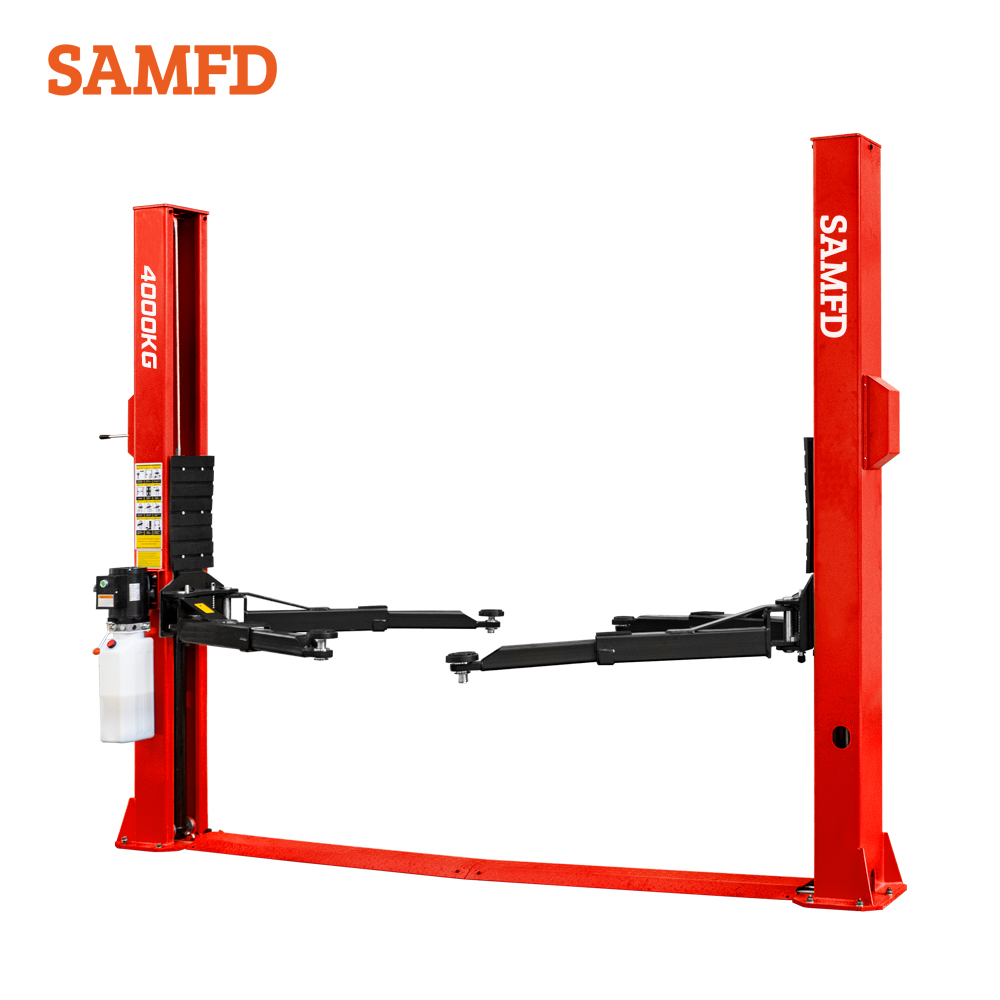

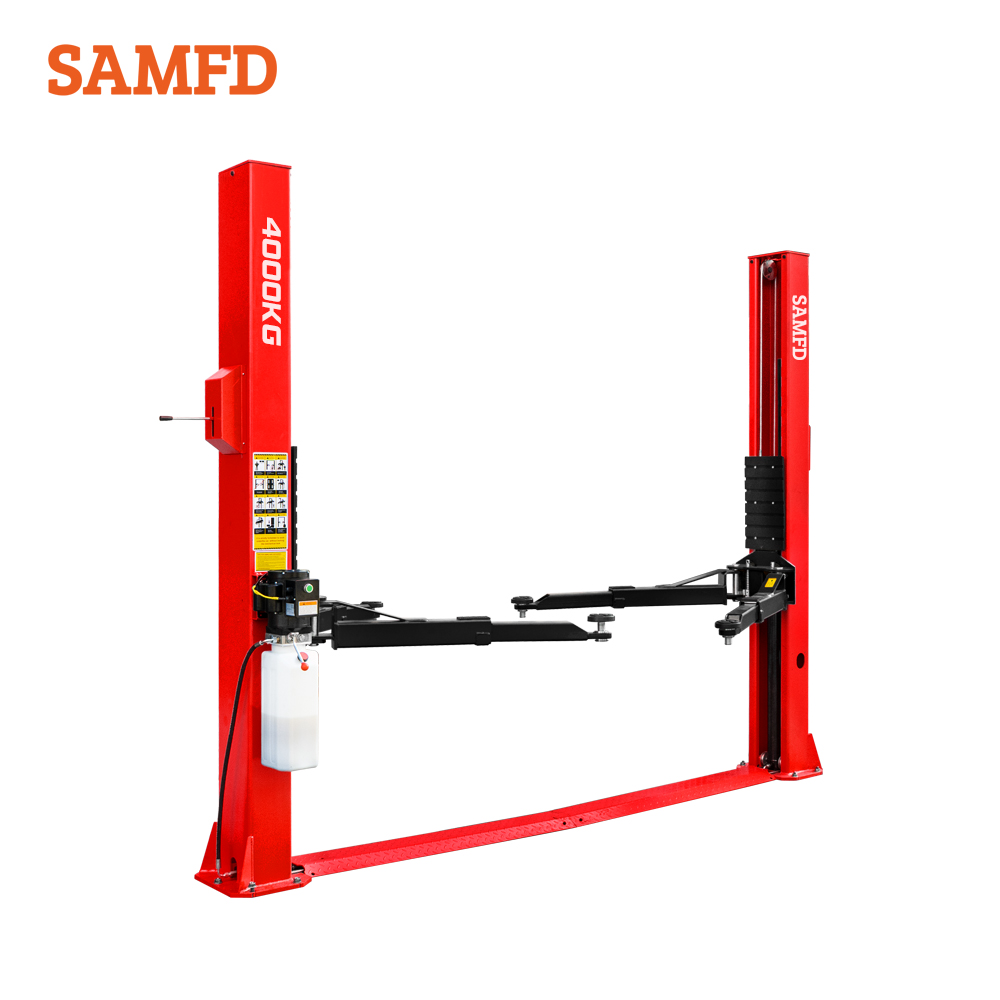

Post Car Lift SML-BS4000
- Whatsapp/Wechat/Tel: +86-18865587388
- Email: info@samfdequipment.com

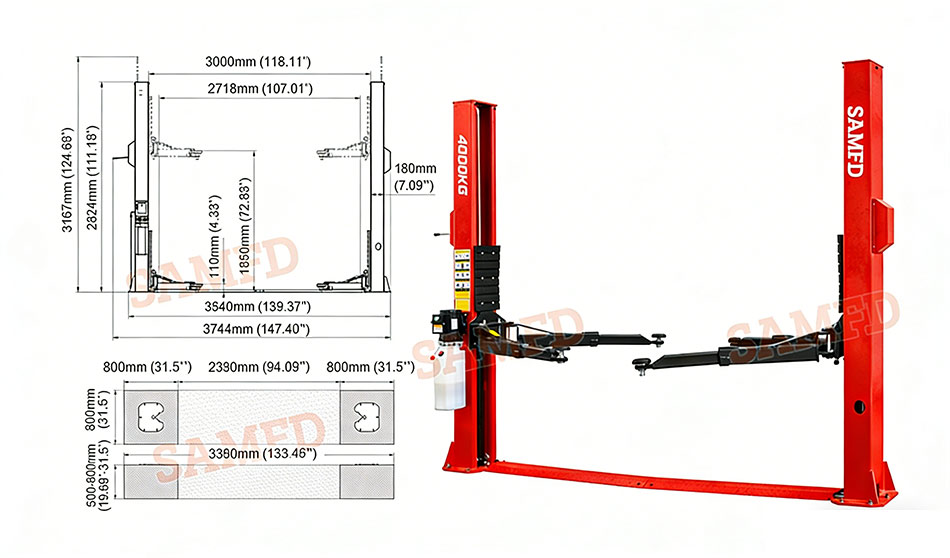

Product Parameters
| PROJECT | BS4000 |
| Lifting Capacity | 4000kgs (8800lbs) |
| Overall Height | 2824mm (111.18") |
| Overall Width | 3540mm (139.37") |
| Lifting Height | 1850mm (72.83") |
| Minimum Height | 110mm (4.33") |
| Drive Thru Width | 2719mm (107.05") |
| Inside Column Width | 3000mm (118.11") |
| Motor Power | 2.2kW |
| Voltage | 220/380V |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Product Description
1. It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity.
2. Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.
3. Door rubber pad protects car door from being damaged in collision.
4. Floor design, suitable for the bottom not high in the auto repair.
5. The arm adopts two stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
6. Its' base plate design demands less store height.

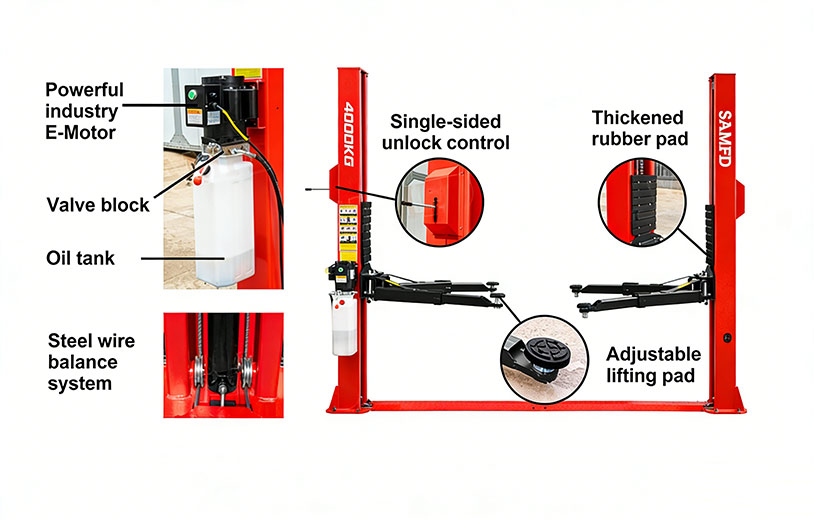

Product Details
Details

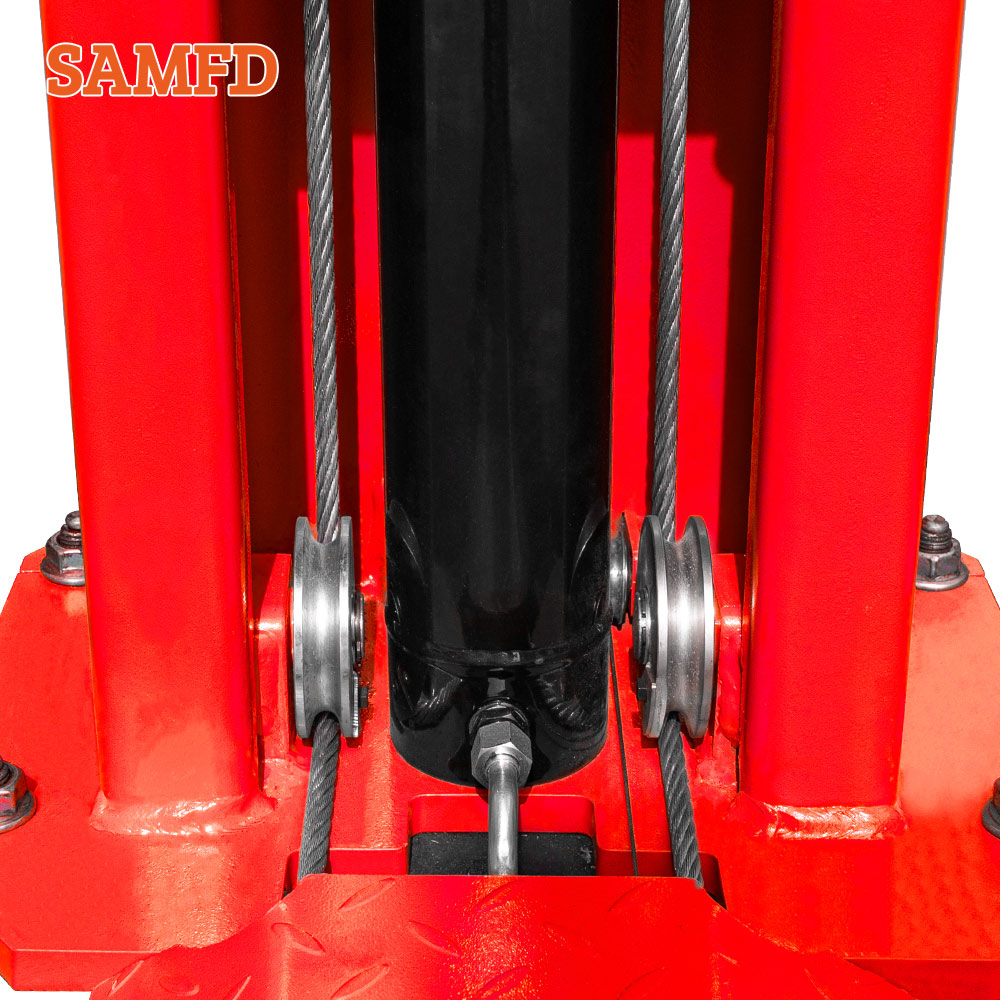

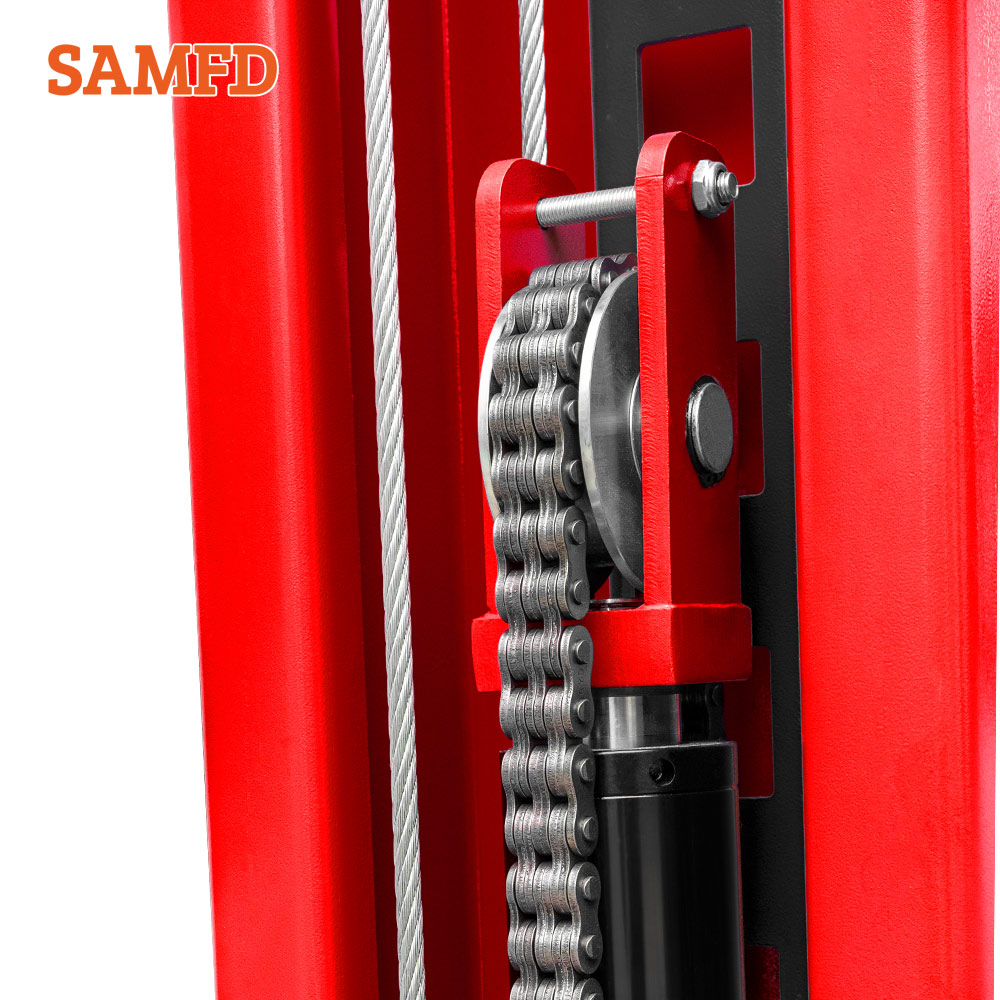

DUAL HYDRAULIC CYLINDER CHAIN DRIVE
Double chain lifting greatly increases the service life of the equipment.
Details

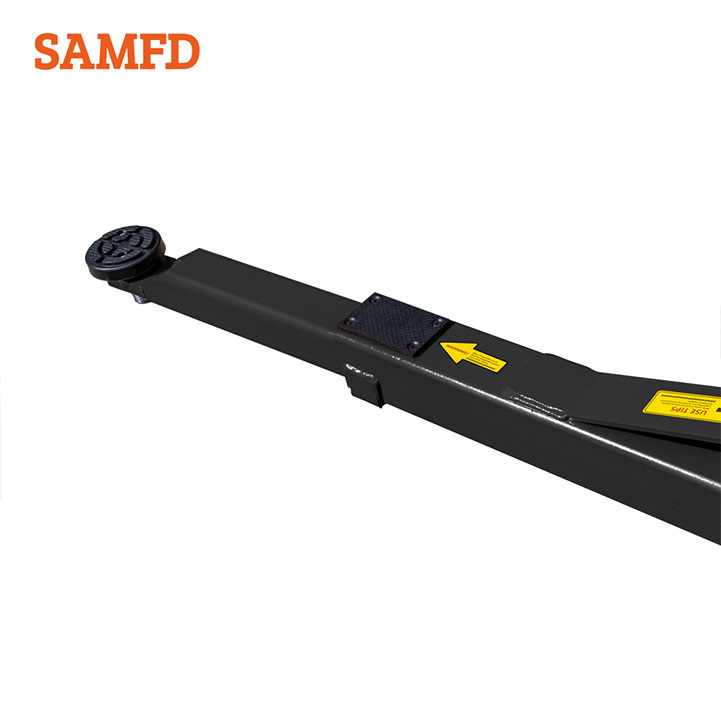

REINFORCED ARMLIFTING FOR SAFEROPERATION
Multiple reinforcement platesare used to reinforce thestress points.ensuring safetyand reliability.

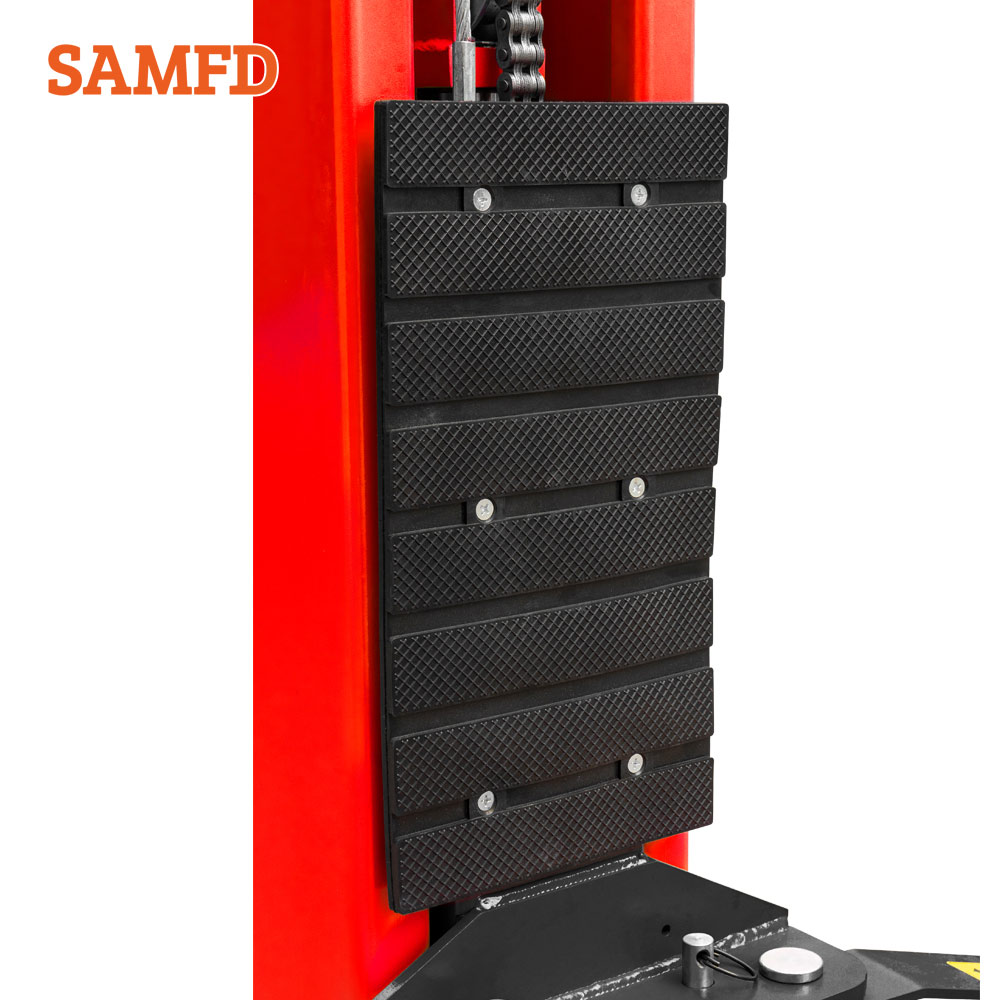

THICKENED RUBBER PAD PROTECTS THE VEHICLE DOOR
Both sides are equipped with thickened rubber pads to protect the vehicle door from scratches.

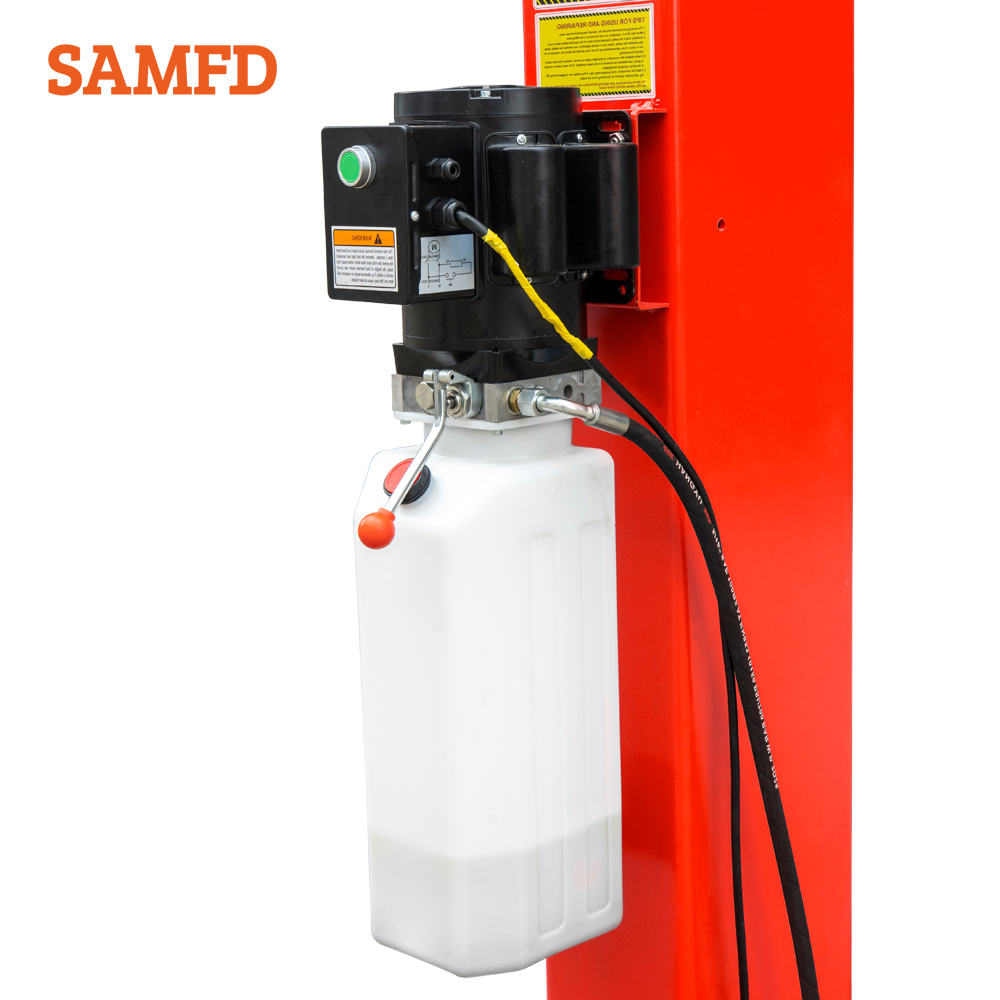

PURE COPPER MOTOR WITH STRONG POWER
The electric hydraulic system has strong power, durability and faster heat dissipation, to maximize work efficiency.

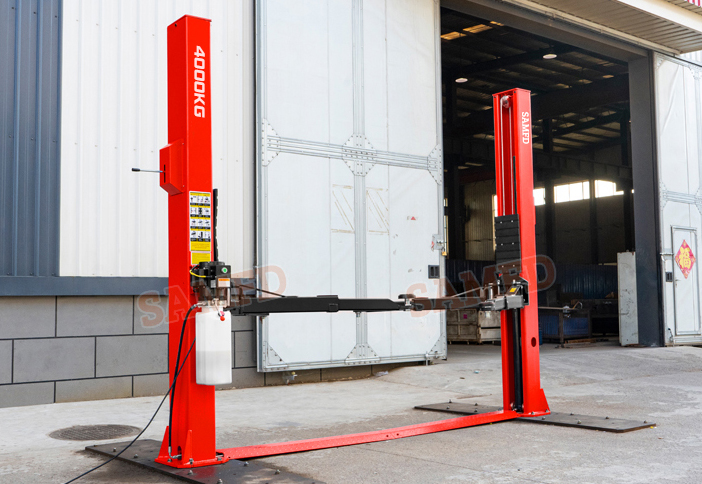

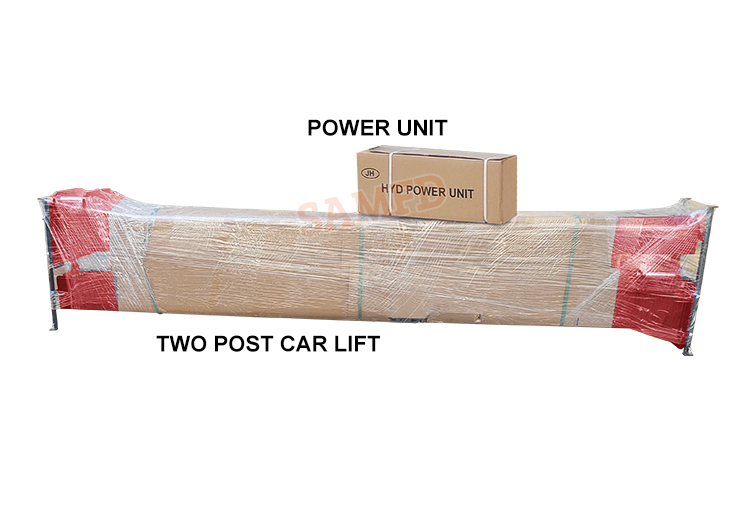

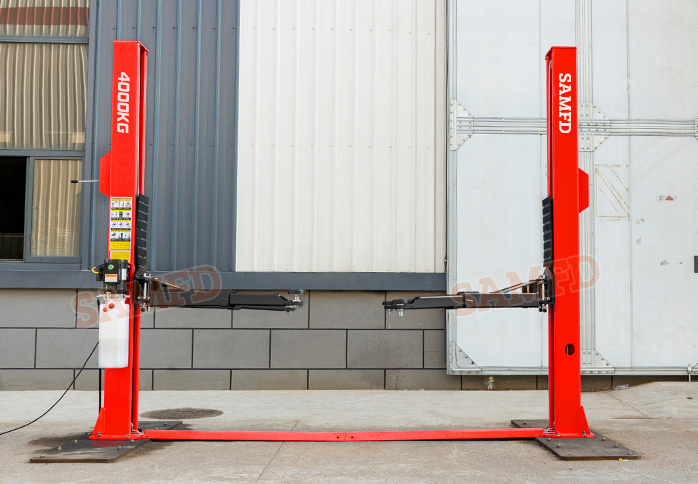

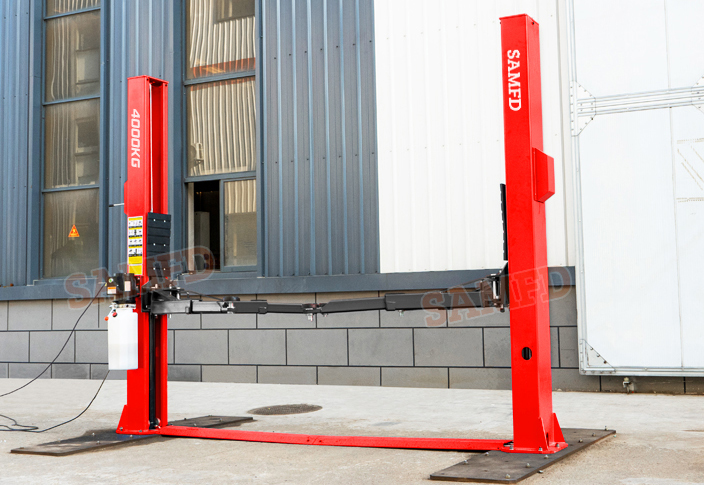

Product Actual Photos
