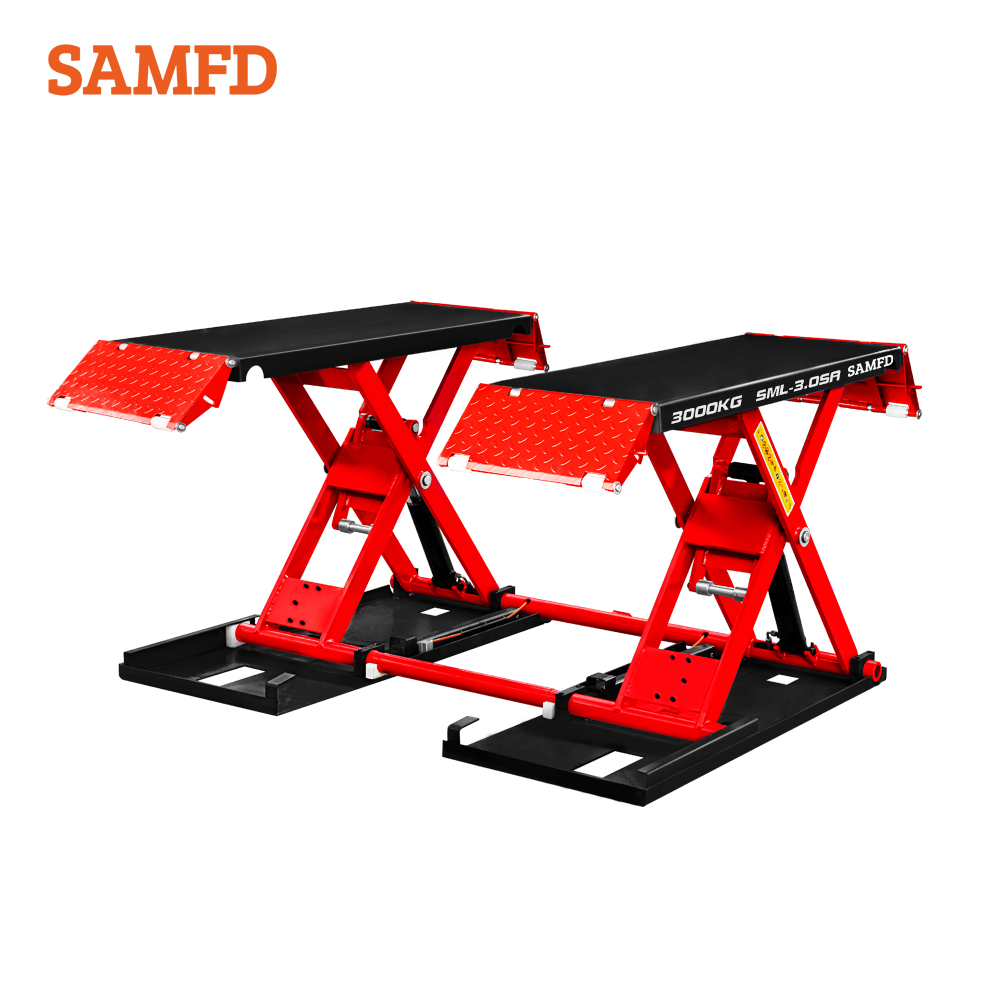

Mid-Rise Scissor Lift（SML-3.0SA）
- Whatsapp/Wechat/Tel: +86-18865587388
- Email: info@samfdequipment.com
Product Parameters

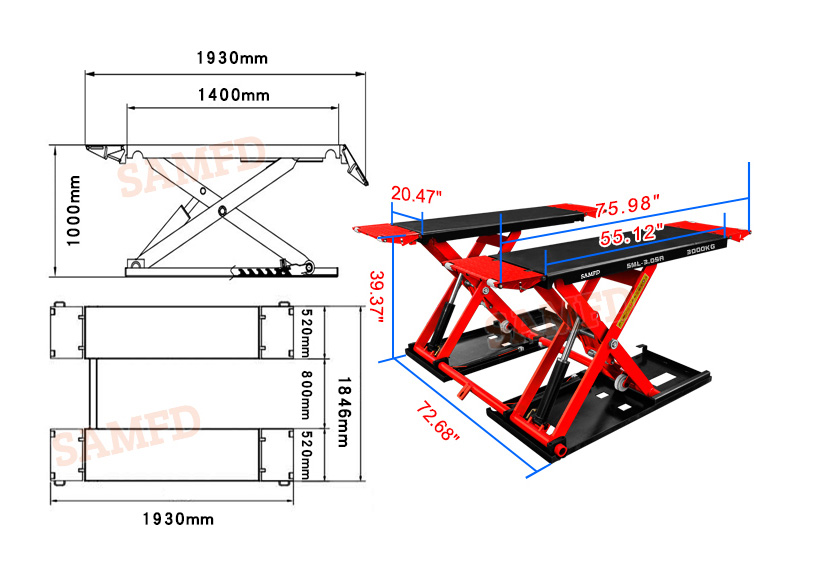

| PROJECT | SML-3.0SA 1m | SML-3.0SA 1.2m | Lifting Capacity | 3000kgs (6600lbs) | 3000kgs (6600lbs) |
| Lenght of Platform | 1400mm (55.12") | 1600mm (62.99") |
| Width of Platform | 520mm (20.47") | 520mm (20.47") |
| Lifting Height | 1000mm (39.37") | 1200mm (47.24") |
| Floor Height | 116mm (4.57") | 116mm (4.57") |
| Width Between Platform | 810mm (31.89") | 810mm (31.89") |
| Operating Air Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Lifting Time | 30-50s | 30-50s |
| Motor Power | 2.2kW | 2.2kW |
| Voltage | 220/380V | 220/380V |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Product Description

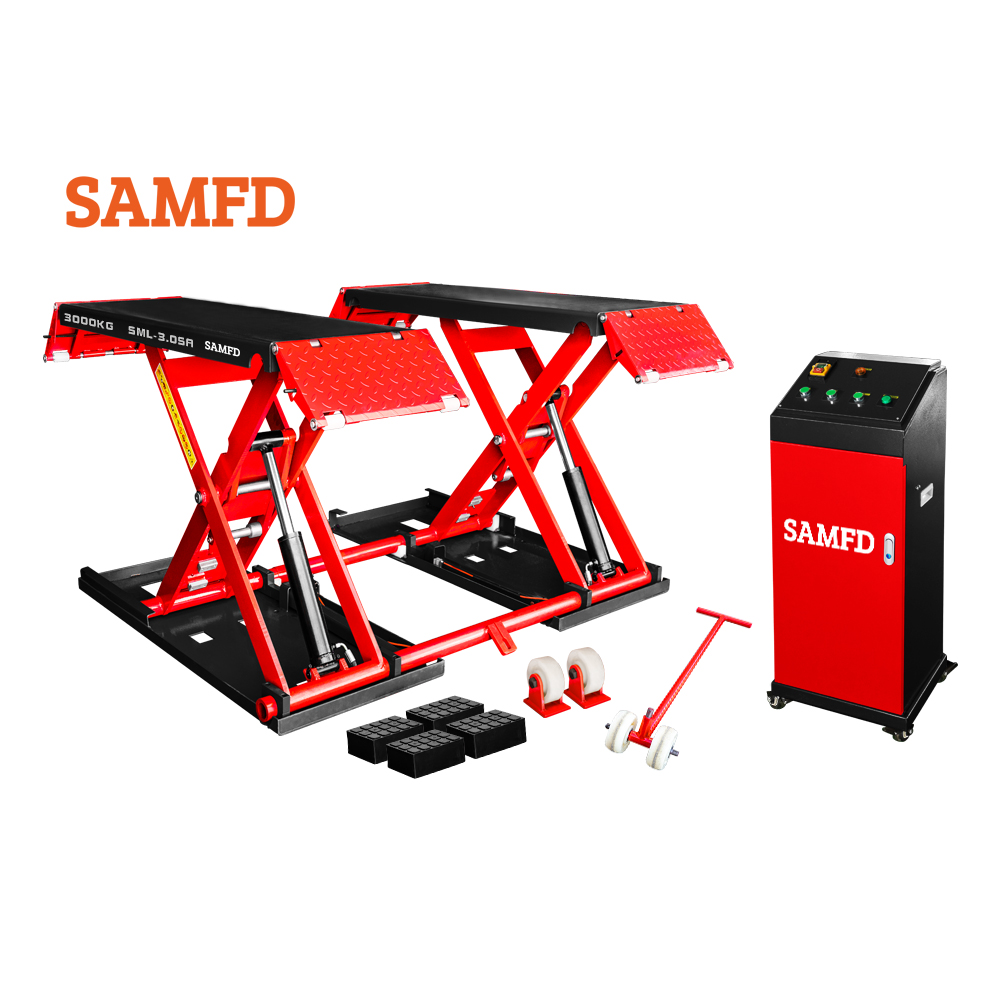

1. Movable designed. Equipped with portable puller with wheels, especially suitable for quick tire repair and vehicle repair; Movable independent control box, safer and more convenient to operate.
2. Super low platforms(116mm minimum height) and ramps meet various chassis height of vehicles,small space to take and installed directly on the ground.
3. Extendable platform suitable for more long chassis vehicles.
4. Two powerful hydraulic cylinders and high power pure copper core motor provide strong power.Lifting capacity 3000 kg, lifting height 1000 mm, for quick tire replacement and simple maintenance.
5. Pneumatic/Electrical safety lock release.Mechanical safety lock engaged automatically, with pneumatic release when lowering.
6. Surface shot blasting process ,electrostatic powder spraying, strong surface adhesion and durable powder coating.
7. High polymer polyethylene slide blocks, wear-resistance.
8. Top quality with CE-certificate.

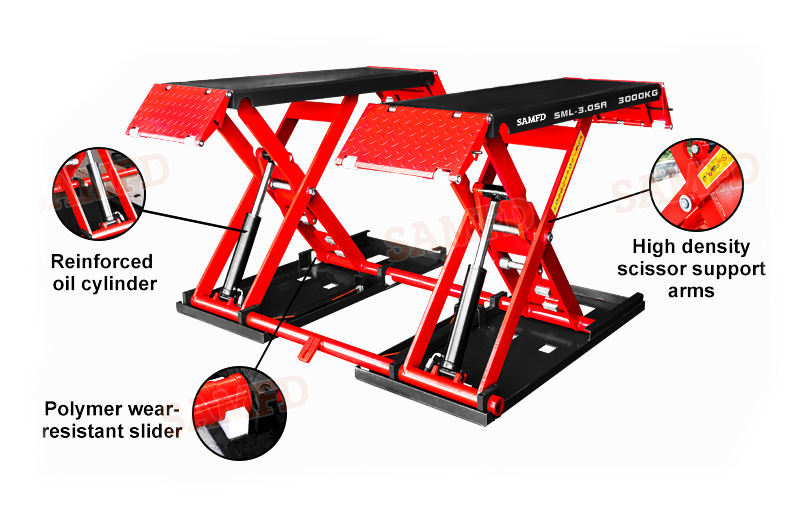

Product Details

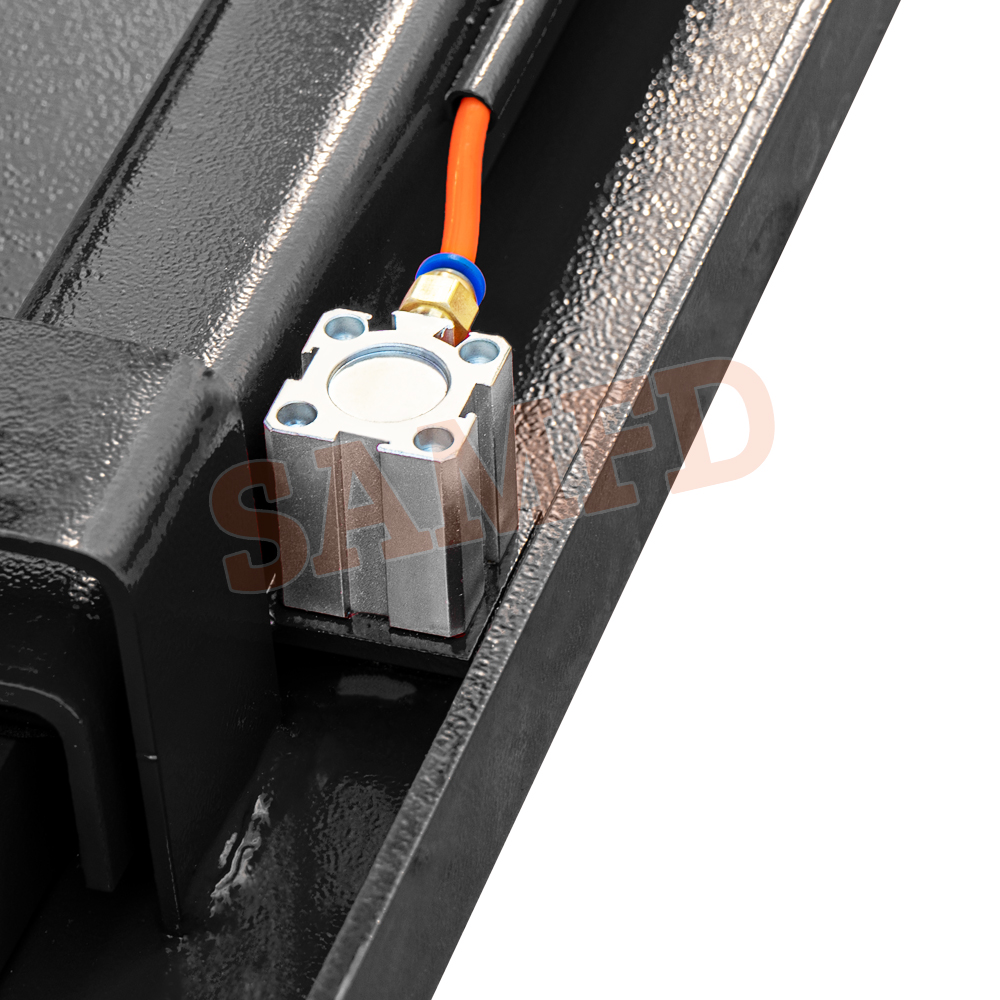

PNEUMATIC SAFETY UNLOCKING DEVICE
Ensure the safety of equipment operation.

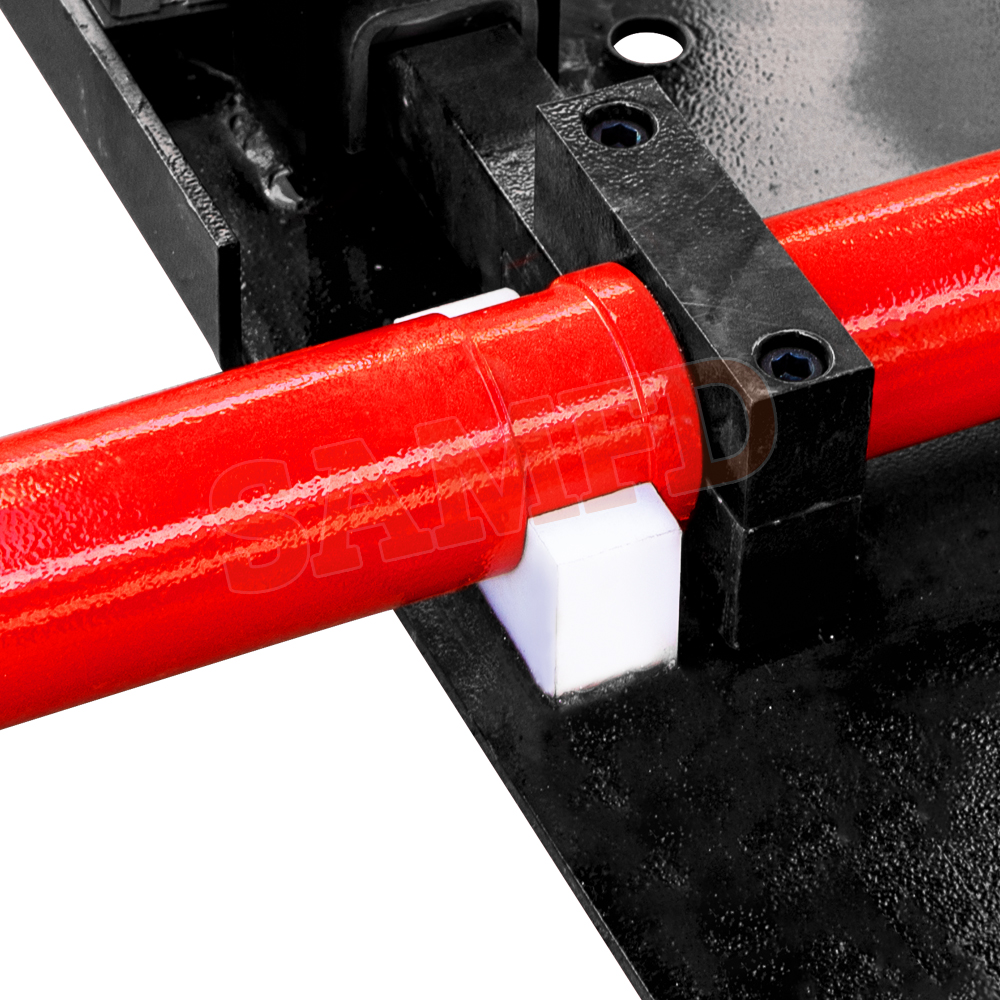

PTFE WEAR-RESISTANT SLIDER
Use ptfe material wear-resistant, durable not stuck, more durable.

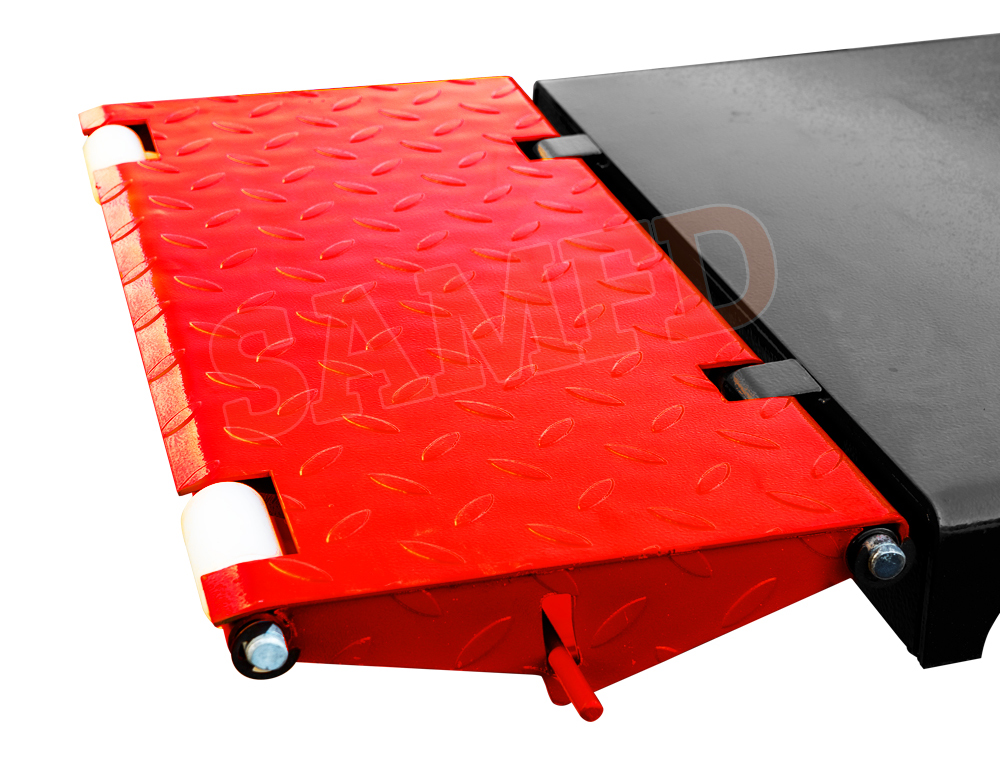

THICKENED UPPER COVER WITH ANTI-SKID APPROACH PLATE
Integrated bending forming of upper cover platform

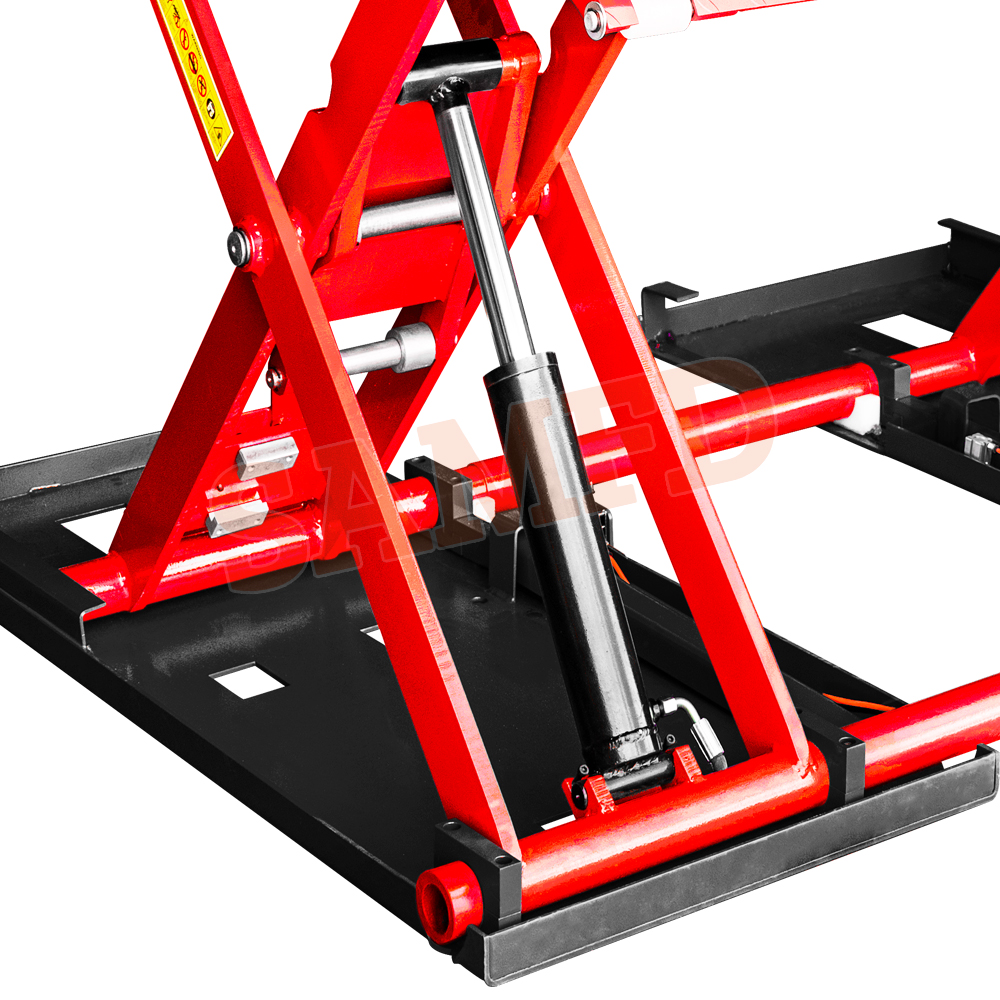

REINFORCED OIL CYLINDER
Adopt double cylinders working together-much stronger power, lifting stable and believable.

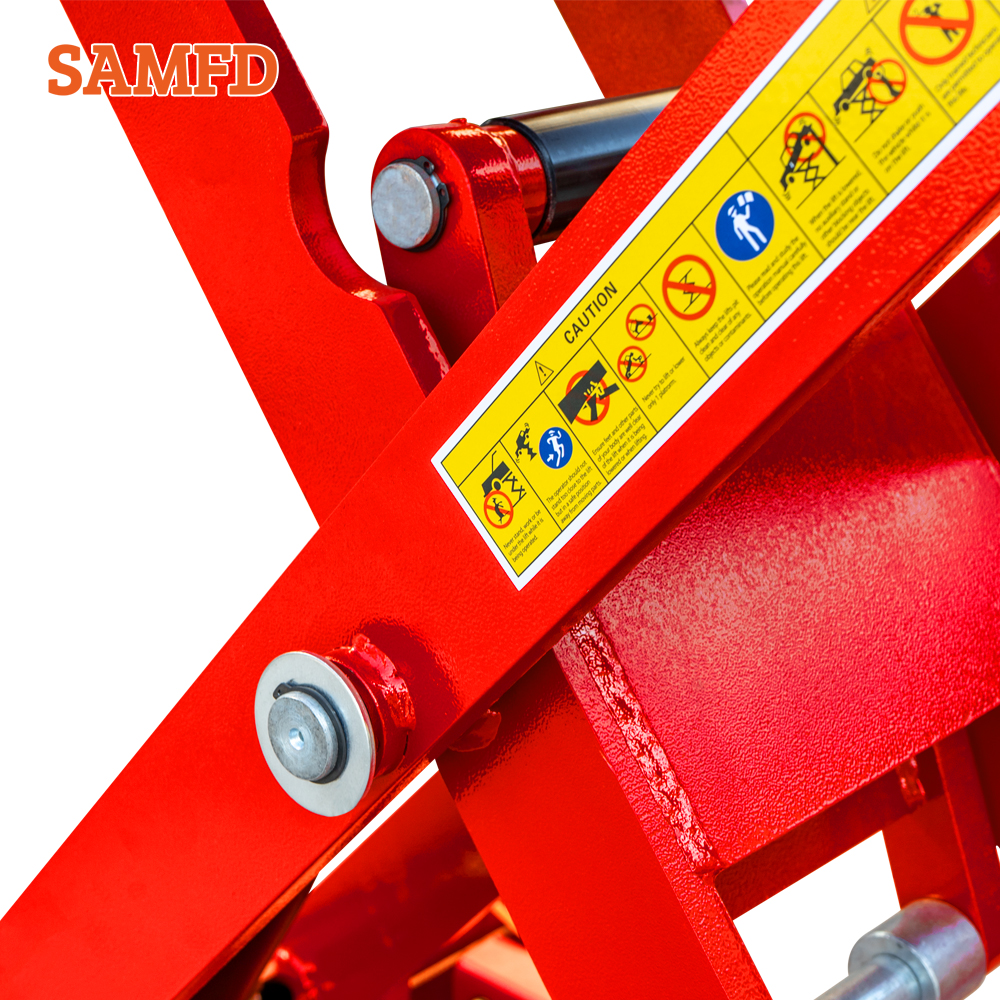

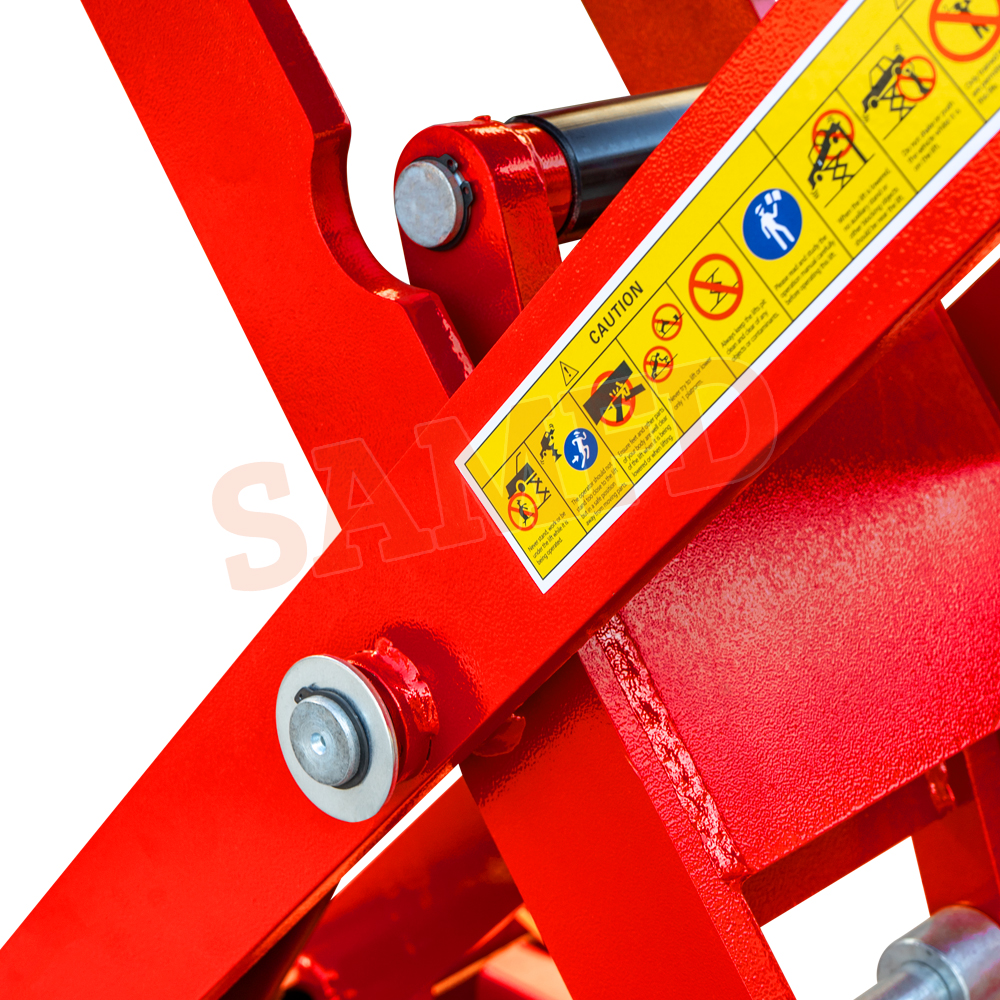

HIGH DENSITY SCISSOR SUPPORT ARMS
The lifting force has been greatly improved to ensure 3 tons lifting capacity.

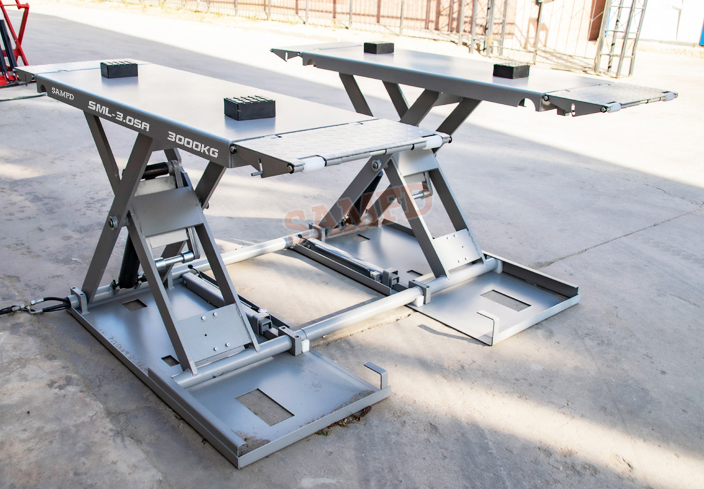

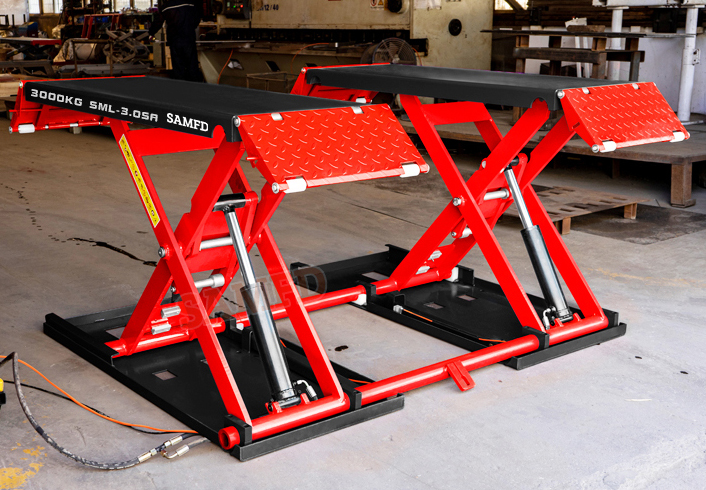

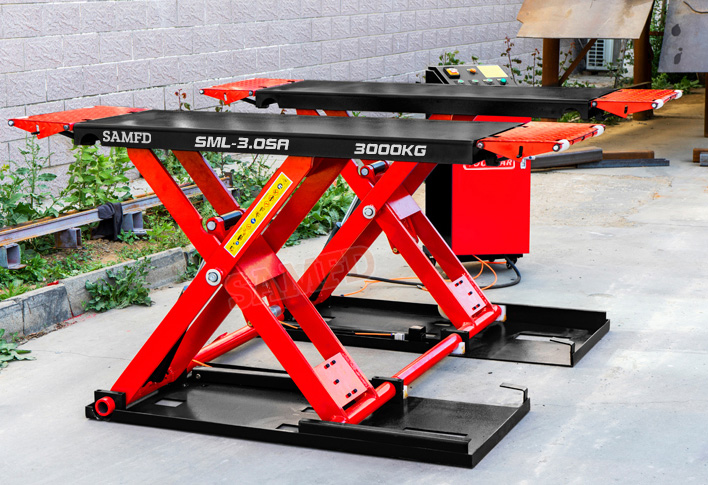

Product Actual Photos
