Clear Floor 2 Post Lift SML-CM4000
- Whatsapp/Wechat/Tel: +86-18865587388
- Email: info@samfdequipment.com
Product Parameters
| PROJECT | CM4000 |
| Lifting Capacity | 4000kgs(8800lbs) |
| Overall Height | 3828mm (150.71") |
| Overall Width | 3540mm (139.37") |
| Lifting Height | 1850mm (72.83") |
| Minimum Height | 110mm (4.33") |
| Drive Thru Width | 2719mm (107.05") |
| Inside Column Width | 3000mm (118.11") |
| Motor Power | 2.2kW |
| Voltage | 220V |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Product Description
1. Dual hydraulic chain-drive cylinders manufactured on high standard , lifting smoothly.
2. Standard door protection rubber pads to prevent possible damage to the door opened without caution.
3. Power pack with UP button and manual lowering valve handle.
4. It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity.
5. Manual two side lock release system.
6. The arm locks engage automatically when the lift is raised and disengage when fully lowered.
7. Shot blasting and high temperature baking powder coated surface finish.
8. With CE certificate.
Product Details
DUAL POINT LOCK
Simple operation and durable
DUAL HYDRAULIC CYLINDER CHAIN DRIVE
Double chain lifting greatly increases the service life of the equipment.
REINFORCED ARM LIFTING FOR SAFER OPERATION
Multiple reinforcement plates are used to reinforce the stress points. Ensuring safety and reliability.
THICKENED RUBBER PAD PROTECTS THE VEHICLE DOOR
Both sides are equipped with thickened rubber pads to protect the vehicle door from scratches.
PURE COPPER MOTOR WITH STRONG POWER
The electric hydraulic system has strong power, durability and faster heat dissipation, to maximize work efficiency.

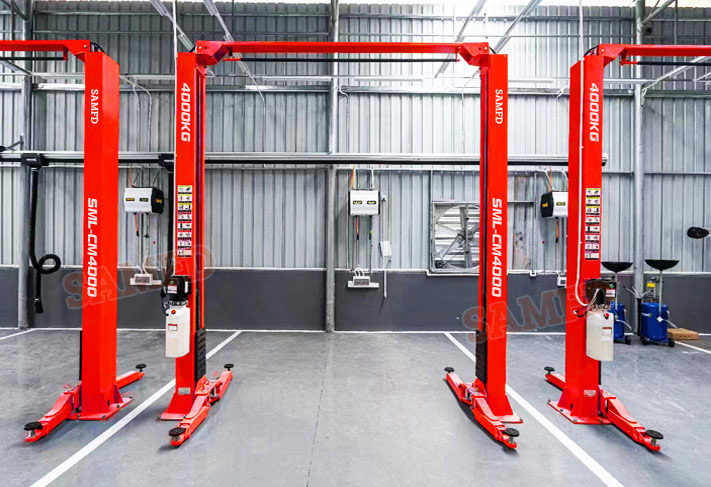

Product Actual Photos
