    Car Wheel Alignment Machine(SM-V2)

    Exceed 20,000 database around the world and with a lifetime update service.

    Repeat measurement accuracy is ±0.02,which be a world's leading level.

    Inquire
    Product Parameters
    Product Description
    Product Details
    Product Actual Photos
    Product Accessories

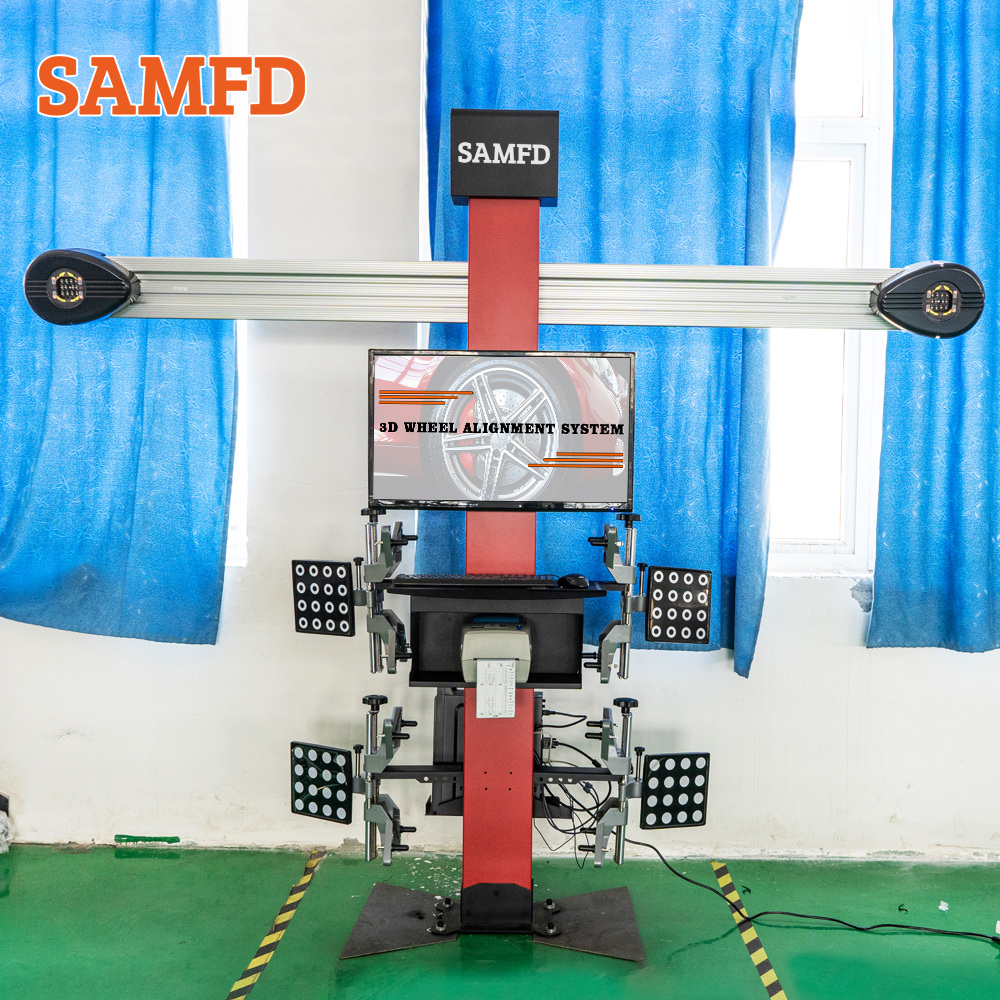

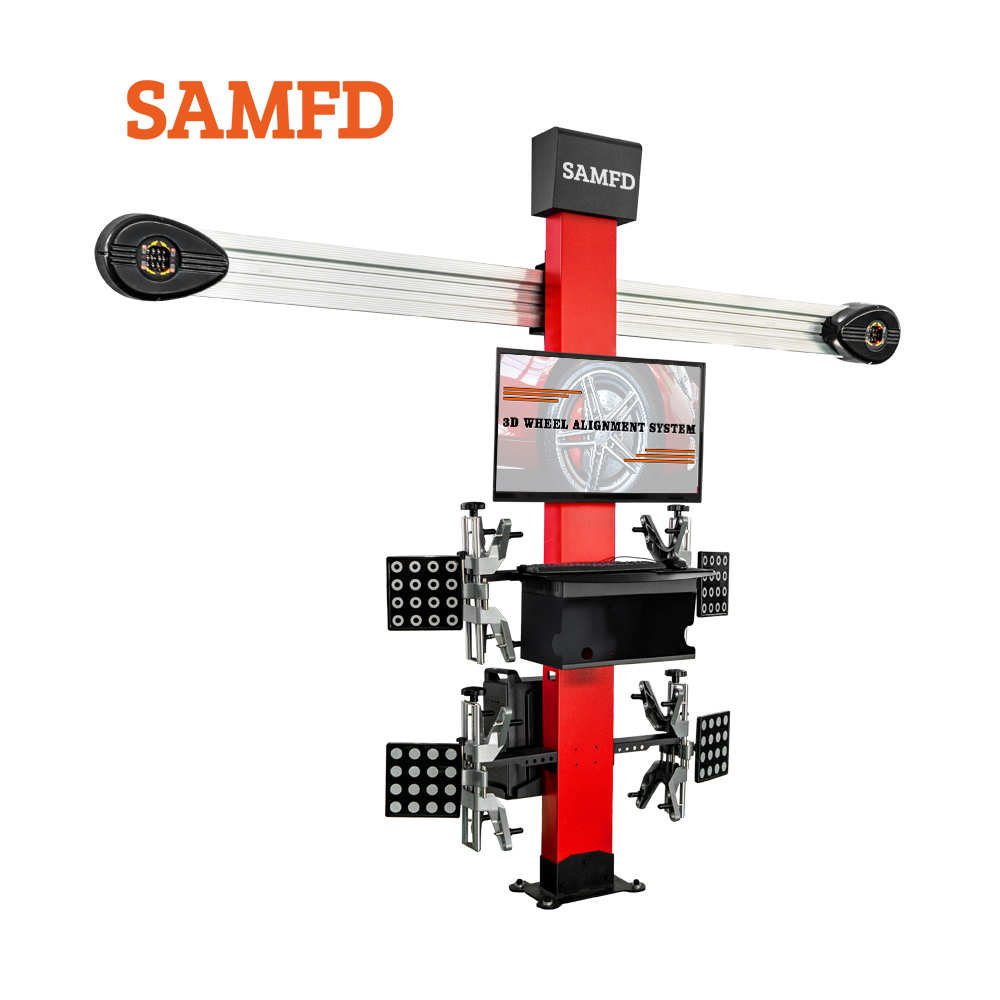

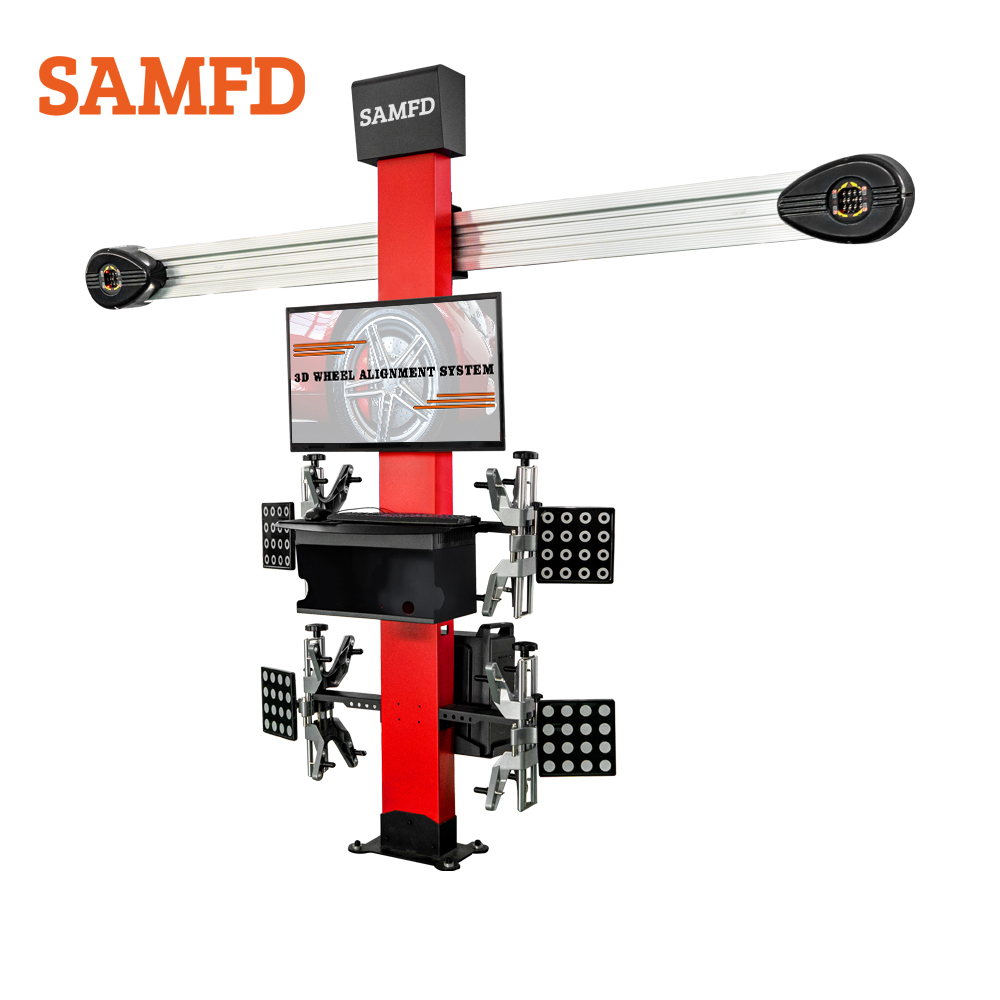

    Car Wheel Alignment Machine(SM-V2)
    Sunmo Mobile Automatic Computerized Manual Four Positioning Automotive Aligner Equipment 3d Full Set Wheel Alignment Machine

    Product Parameters

    PROJECT SM-V2
    Measurement Items Measurement Accuracy Measuring Range
    Total Toe +0.01° +40°
    Externa Bevel +0.01° ±45°
    Caster +0.02° ±45°
    S.A.I +0.02° ±45°
    Thrust Angle +0.01° ±40°
    Set Back +0.01° ±40°
    Max.Steering Angle +0.02° ±50°
    Wheel Track +2mm 1219-2438mm
    Wheelbase +2mm 2006-4572mm

    * Note: Technical parameters updated & adjusted as to market demand without prior notice

    Product Description

    1. Exceed 20,000 database around the world and with a lifetime update service.

    2. Repeat measurement accuracy is ±0.02,which be a world's leading level.

    3. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base,Wheel rolling redius.

    4. Humanized software design, animation video can be used to help technician more quickly complete the operation.

    5. Apply high strength plastic target, which is lighter, thinner and stronger.

    6. 5 million high definition camera: it can also assure accurate alignment measurement when target plates get Software Feature.

    7. Fast installation, suitable for all rims between 12"-25" . Which can install both on iron and aluminum wheel hub.

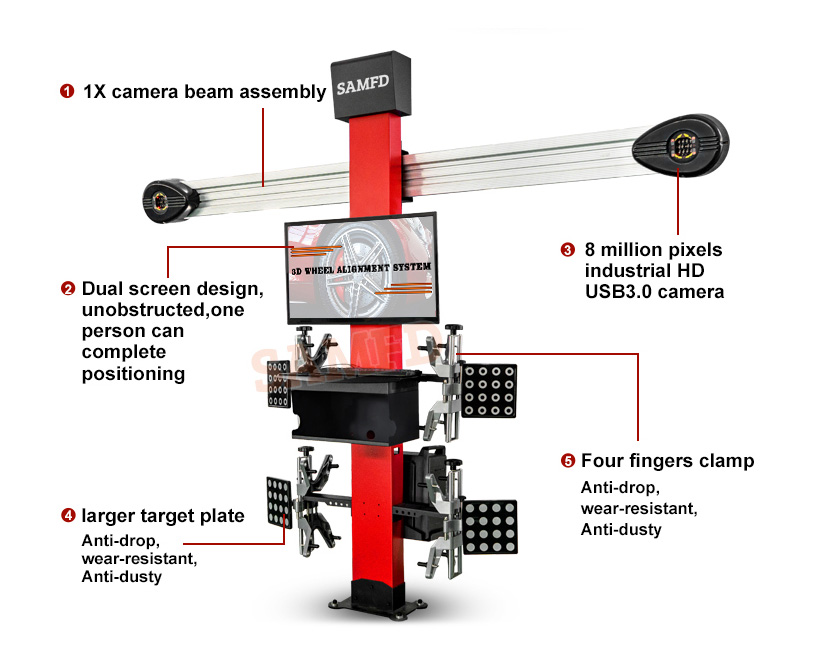

    Product Details

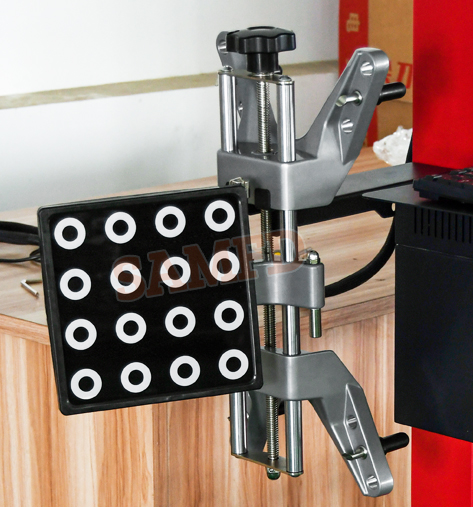

    DROP RESISTANT TARGET* 4

    DROP RESISTANT TARGET* 4

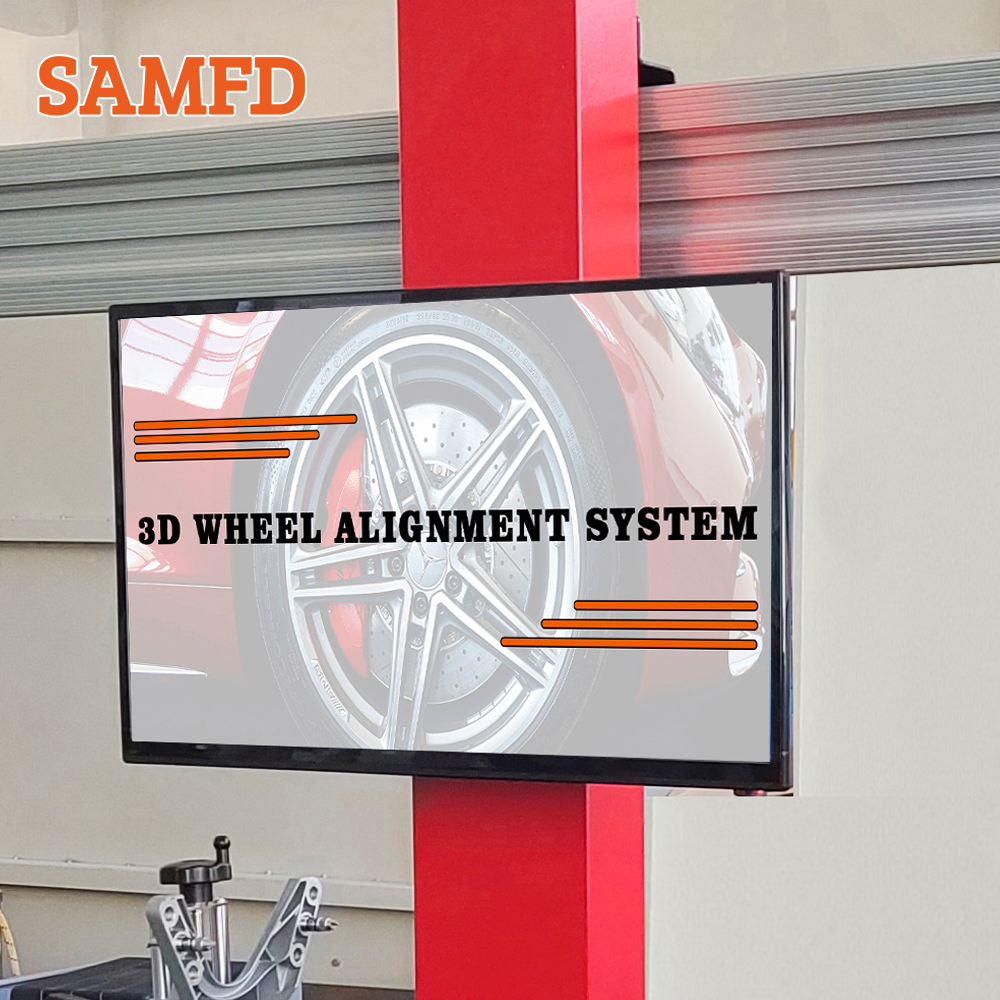

    32" INCH HIGH DEFINITION DISPLAY

    32" INCH HIGH DEFINITION DISPLAY

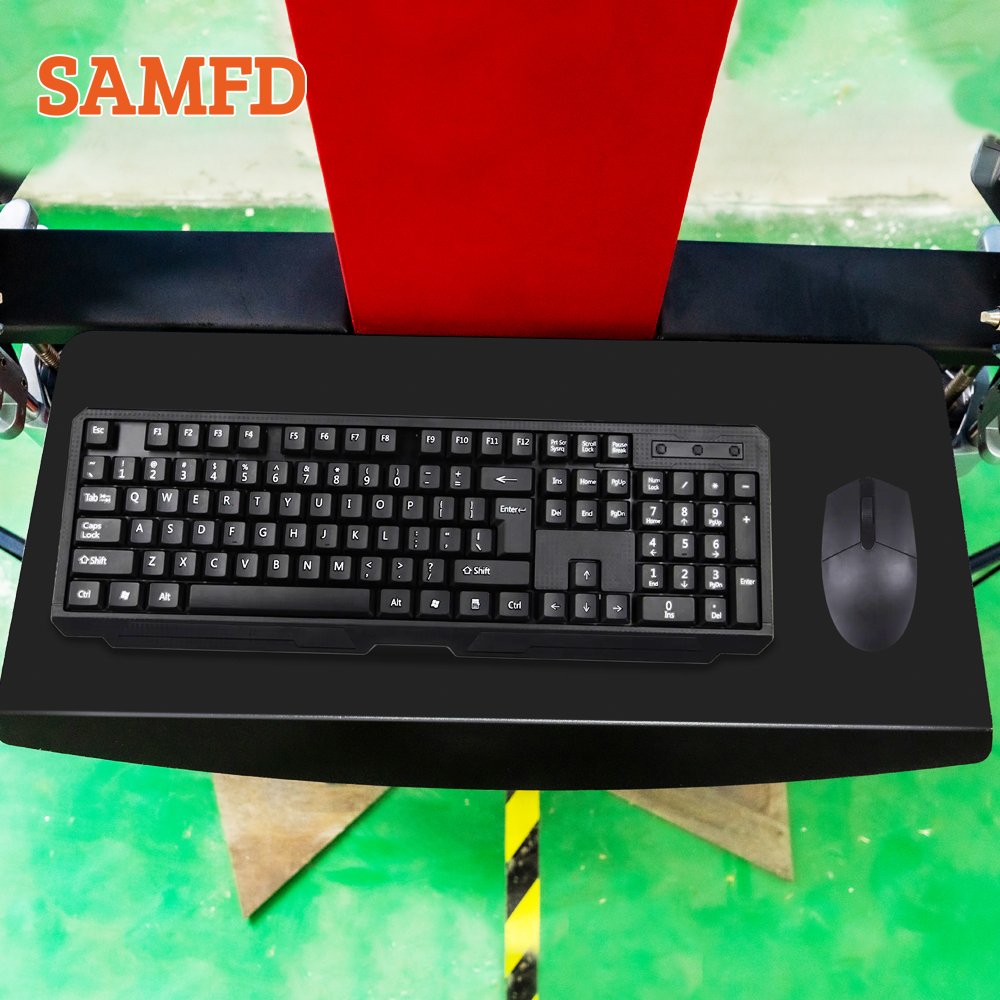

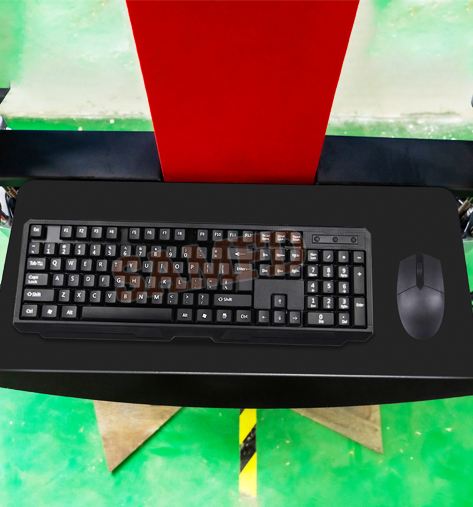

    KEYBOARDMOUSE

    KEYBOARDMOUSE

    STEERING WHEEL HOLDER

    STEERING WHEEL HOLDER

    Adjustable handleThe fixing frame is carefullywrapped and does not damagethe steering wheel

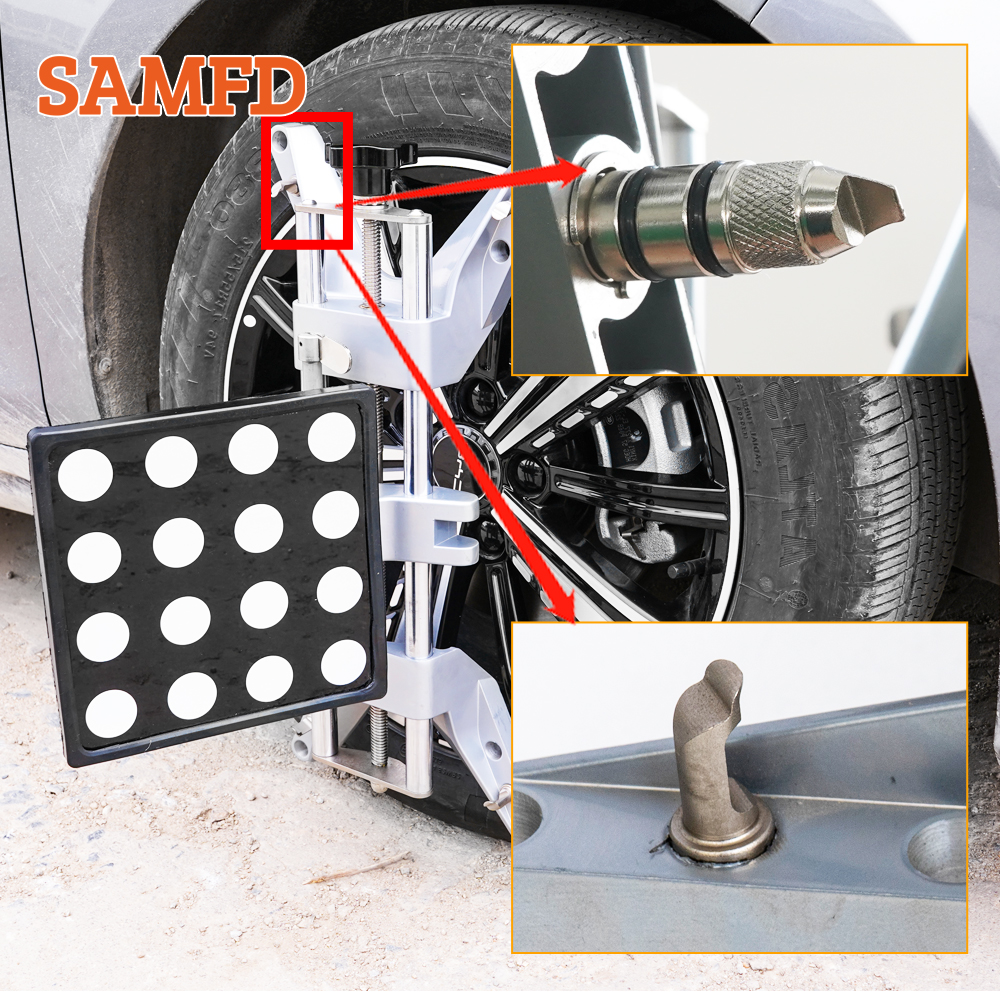

    LIGHTWEIGHT ALUMINUM ALLOY FIXTURE

    LIGHTWEIGHT ALUMINUM ALLOY FIXTURE

    Lightweight and labor-saving,with wide size and wide applicabilityThe fixture is suitable for II-25"inch tires

    BIGGER TARGET PLATE

    BIGGER TARGET PLATE

    Anti strong light and high reflectionmaterial, precise feedback signal,anti drop, wear-resistant, antidust, and more durable.

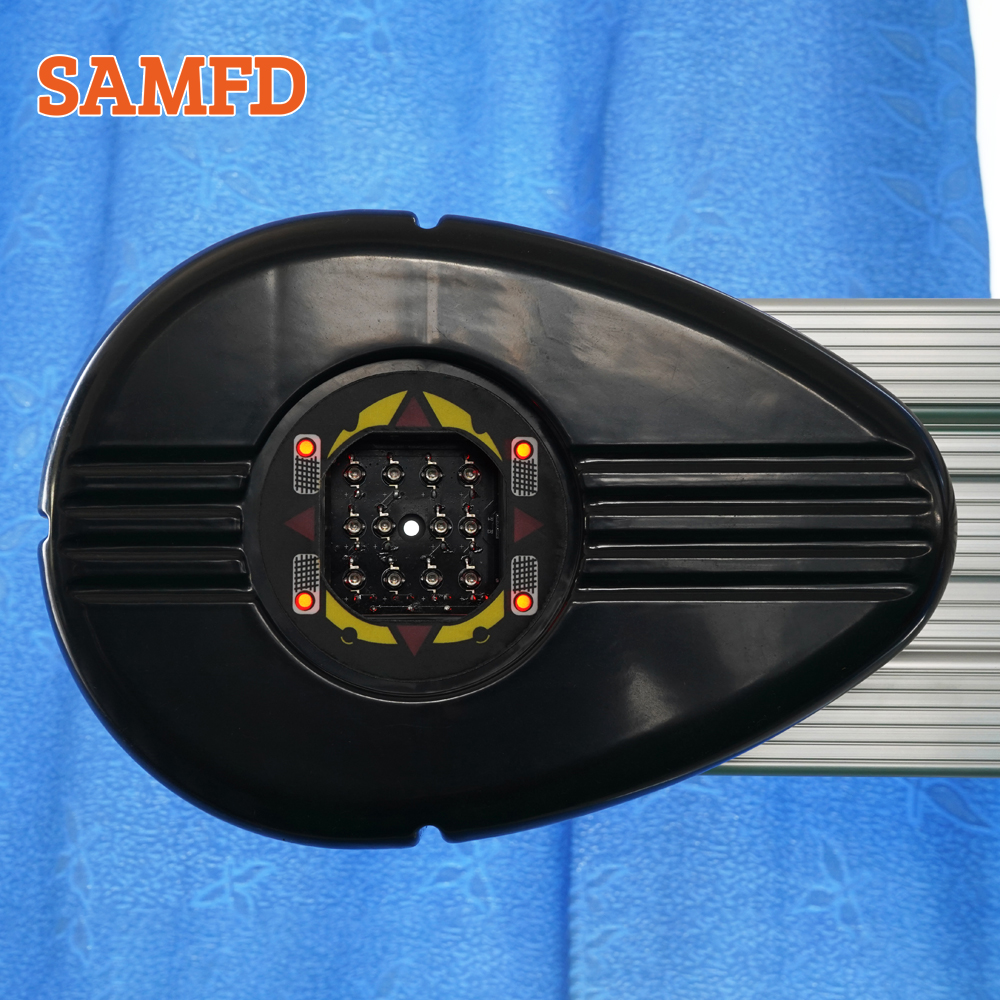

    8 MEGA-PIXELHD CAMERAS*2

    8 MEGA-PIXELHD CAMERAS*2

    Product Actual Photos

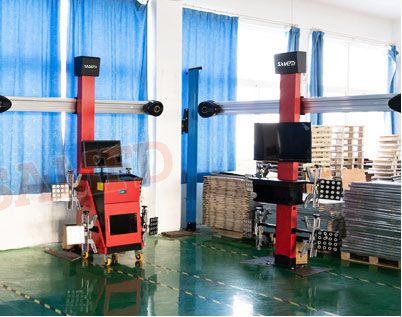

    SM-V2-6
    SM-V2-5

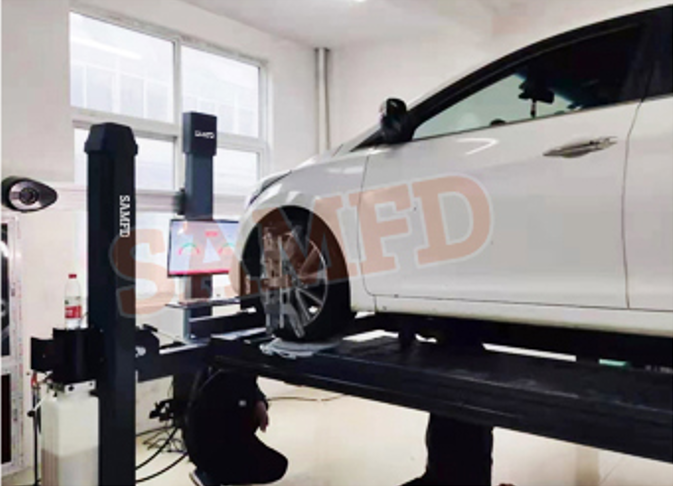

    SM-V2-4

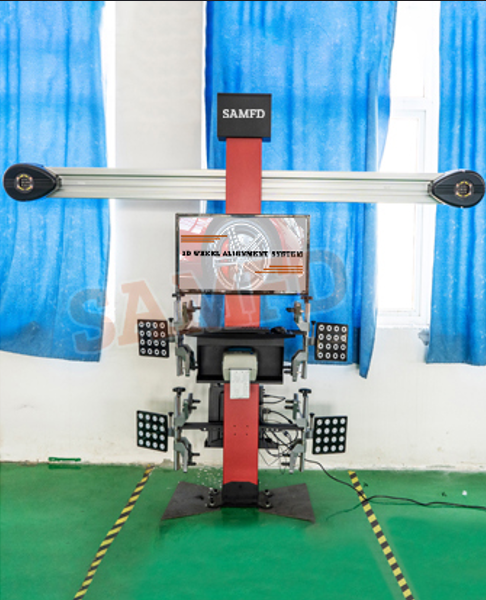

    SM-V2-3

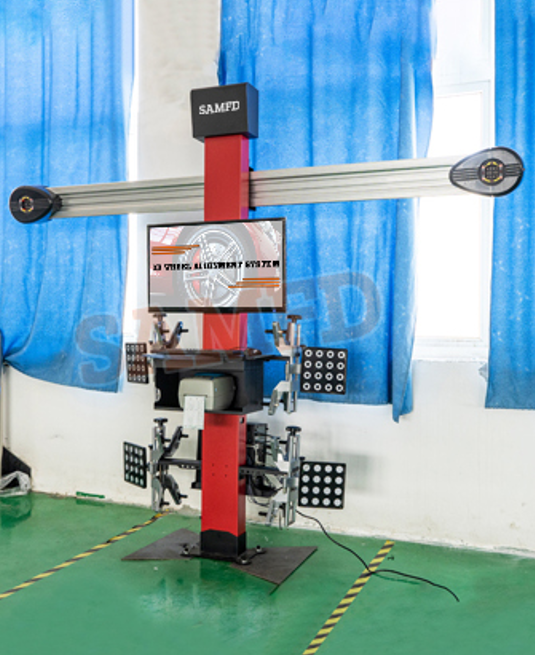

    SM-V2-2

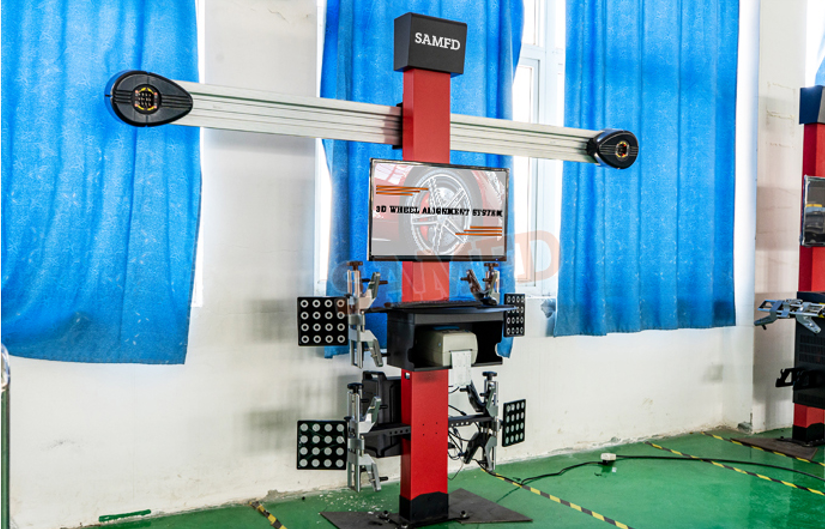

    SM-V2-1

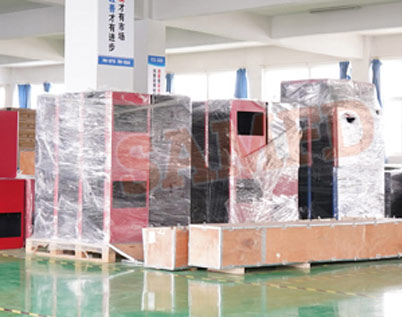

    SM-V2-8
    SM-V2-7

    Product Accessories

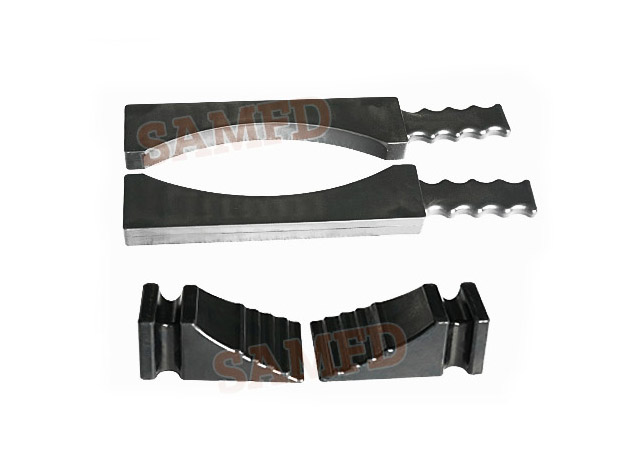

    TURNTABLETRANSITION BLOCK/TURNPLATE *2

    TURNTABLETRANSITION BLOCK/TURNPLATE *2

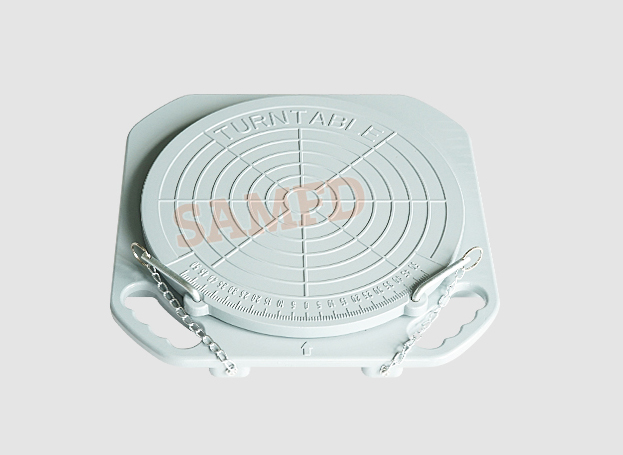

    TURNPLATE *2

    TURNPLATE *2

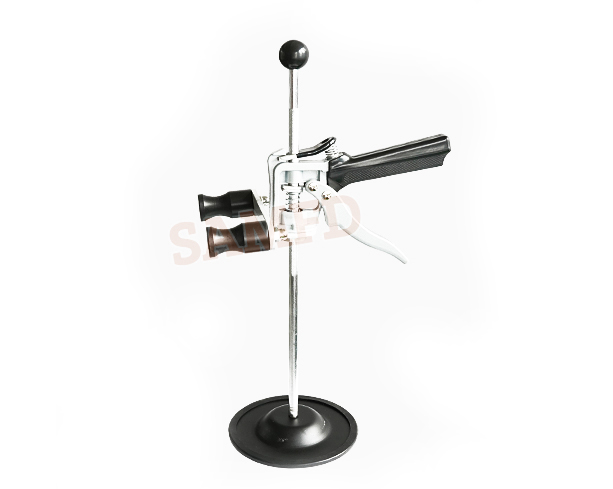

    STEERING WHEEL HOLDER

    STEERING WHEEL HOLDER

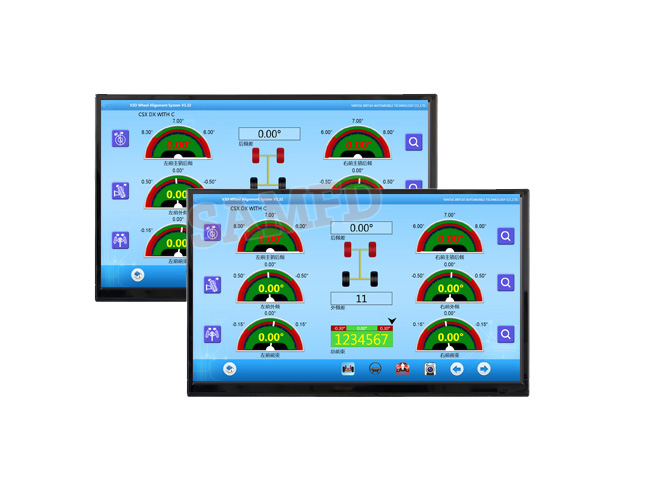

    32" INCH HIGH DEFINITION DISPLAY

    32" INCH HIGH DEFINITION DISPLAY

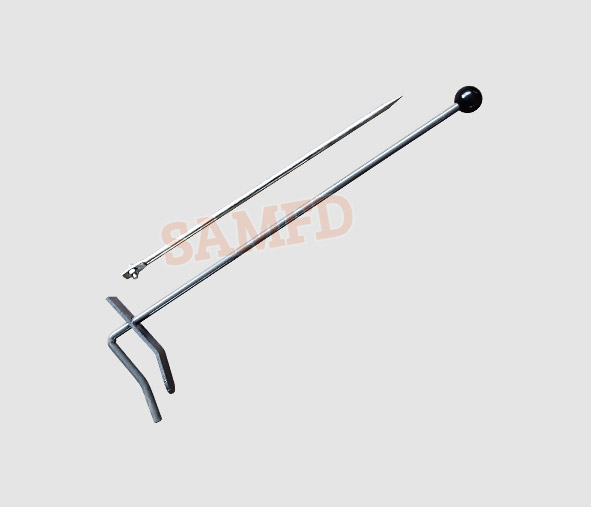

    BRAKEHOLDER

    BRAKEHOLDER

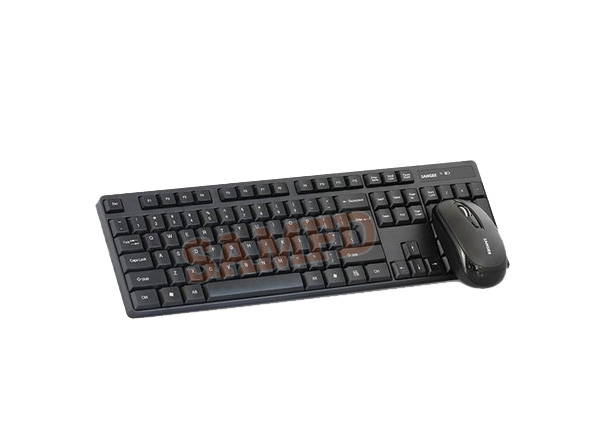

    KEYBOARDMOUSE

    KEYBOARDMOUSE

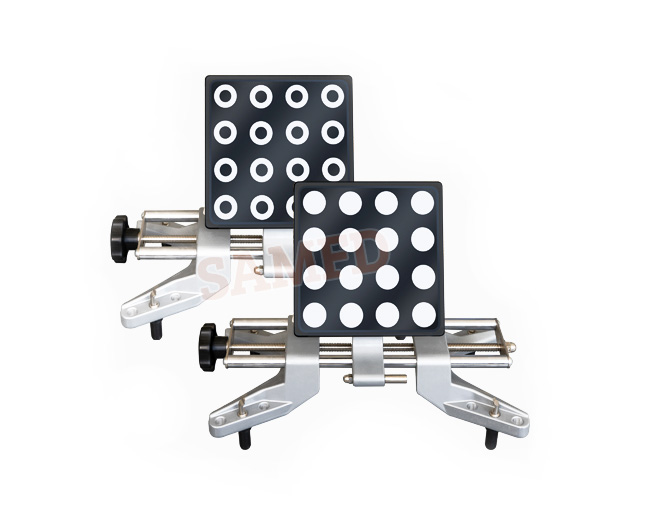

    DROP RESISTANTTARGET* 4

    DROP RESISTANTTARGET* 4

    8 MEGA-PIXELHD CAMERAS*2

    8 MEGA-PIXELHD CAMERAS*2
