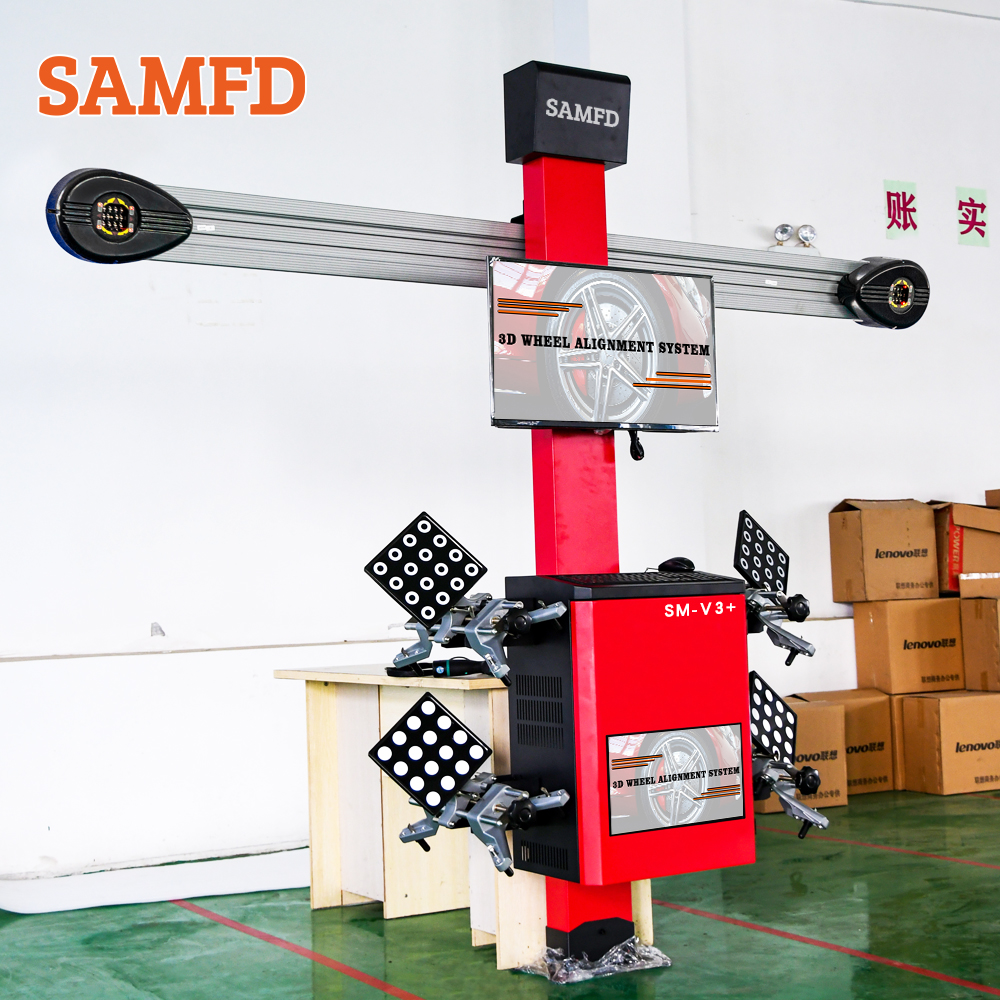

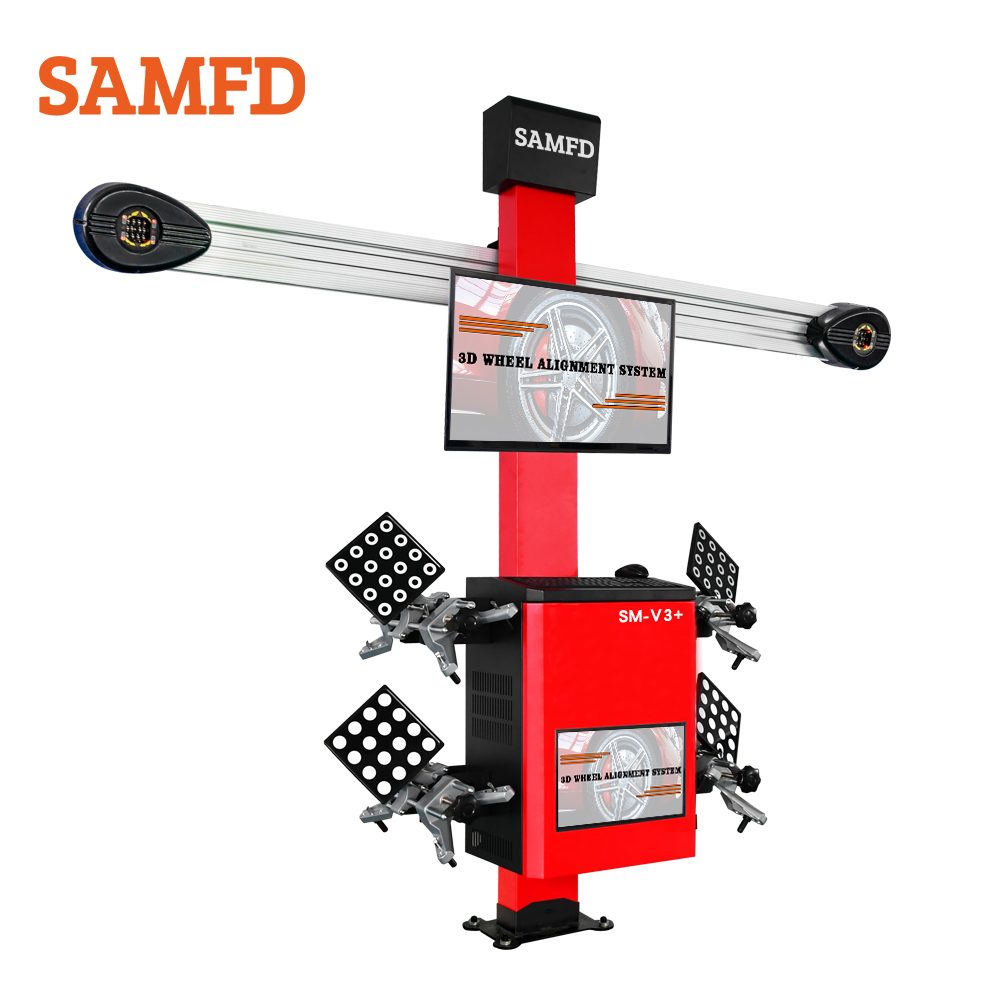

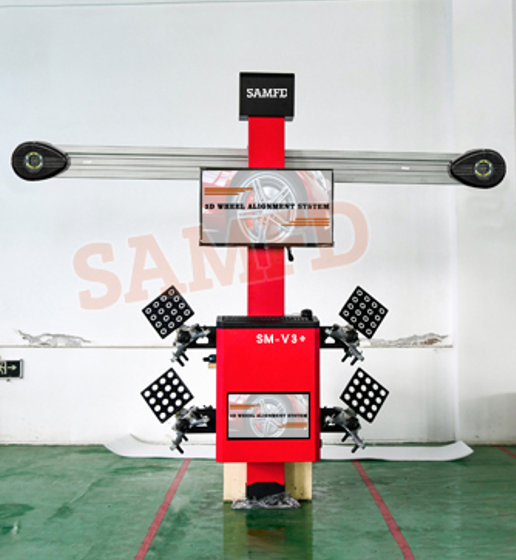

Car Wheel Alignment Machine (SM-V3+)
The software adopts the expert mode, the operation is simple and fast, saving time, saving more than 30% of the time compared with the ordinary locator.
The test data is traceable and has a printing function, and the test data contains the detailed parameters of the vehicle.
- Whatsapp/Wechat/Tel: +86-18865587388
- Email: info@samfdequipment.com

Product Parameters
| PROJECT | SM-V3+ | |
| Measurement Items | Measurement Accuracy | Measuring Range |
| Total Toe | +0.01° | +40° |
| Externa Bevel | +0.01° | ±45° |
| Caster | +0.02° | ±45° |
| S.A.I | +0.02° | ±45° |
| Thrust Angle | +0.01° | ±40° |
| Set Back | +0.01° | ±40° |
| Max.Steering Angle | +0.02° | ±50° |
| Wheel Track | +2mm | 1219-2438mm |
| Wheelbase | +2mm | 2006-4572mm |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Product Description
1. The software adopts the expert mode, the operation is simple and fast, saving time, saving more than 30% of the time compared with the ordinary locator.
2. The test data is traceable and has a printing function, and the test data contains the detailed parameters of the vehicle.
3. Special function detection and accident vehicle measurement system.
4. Sound and light dual operation instructions, full voice synchronous guidance measurement, LED intelligent instructions, multiple installation methods.
5. The world's largest database supports 106 car brands and more than 50,000 models. Support user-defined models to add.
6. Industry-leading four-wheel positioning optical system, the camera is fixed, no need to move, avoid bumps, and greatly extend the service life.
7. The target is waterproof and anti-fall, and does not need to be calibrated regularly. Easy to use and maintain. No cable dragging troubles, no charging troubles, no battery replacement troubles, no signal not receiving troubles.

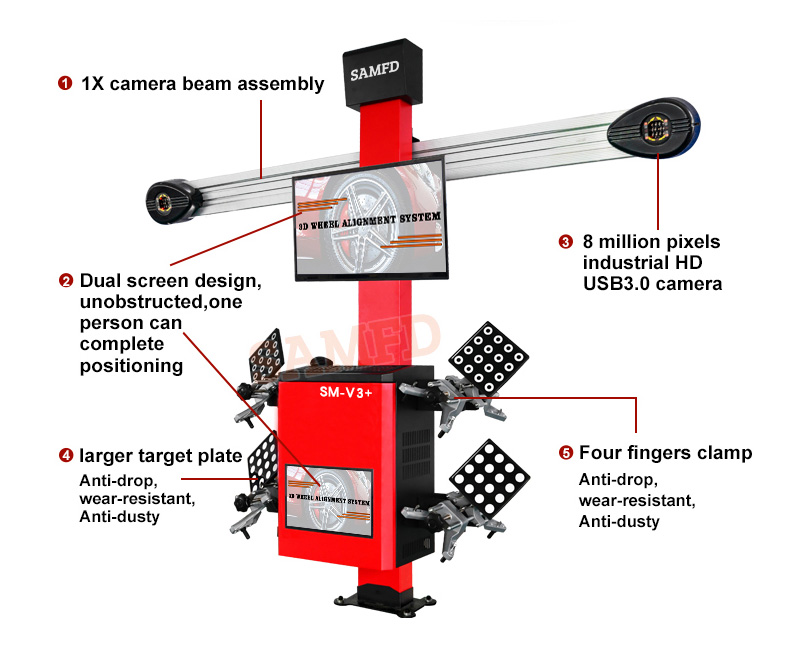

Product Details

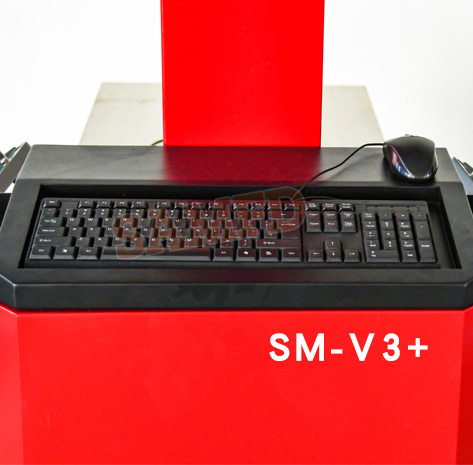

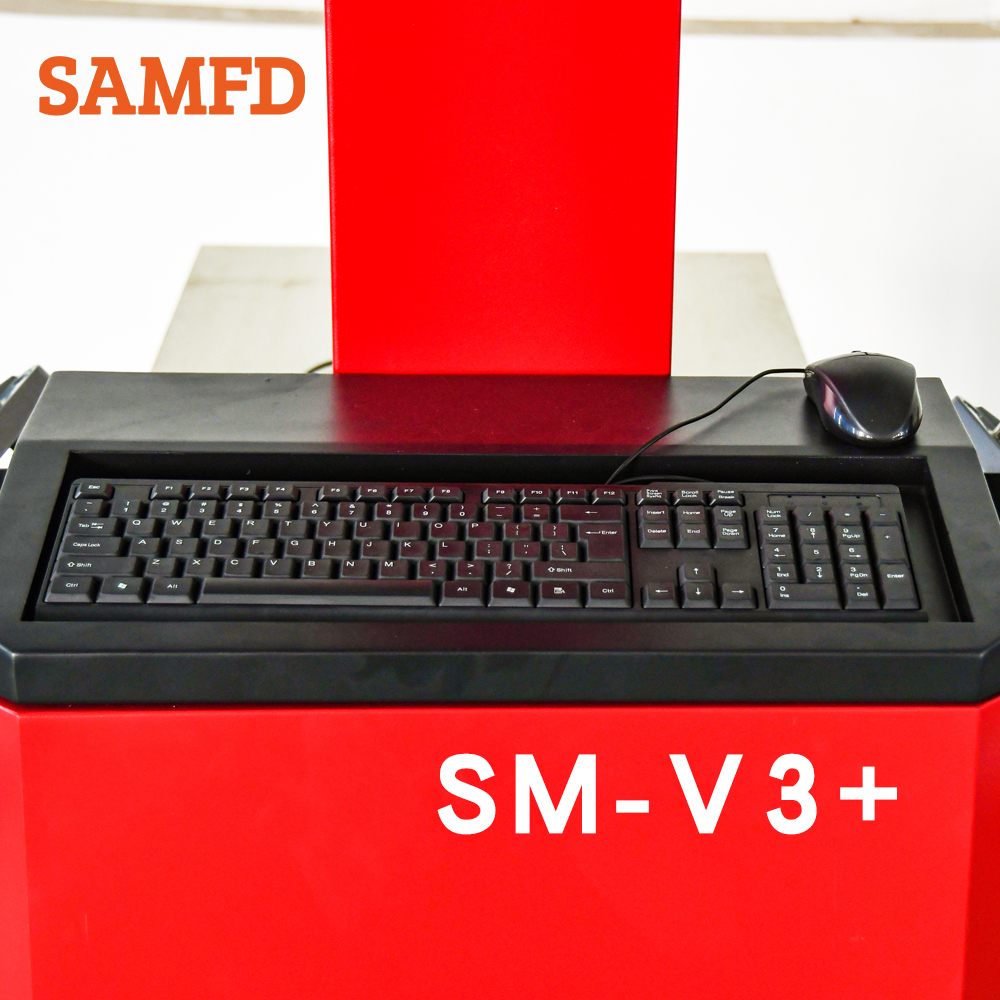

KEYBOARDMOUSE v3+
DROP RESISTANT TARGET* 4

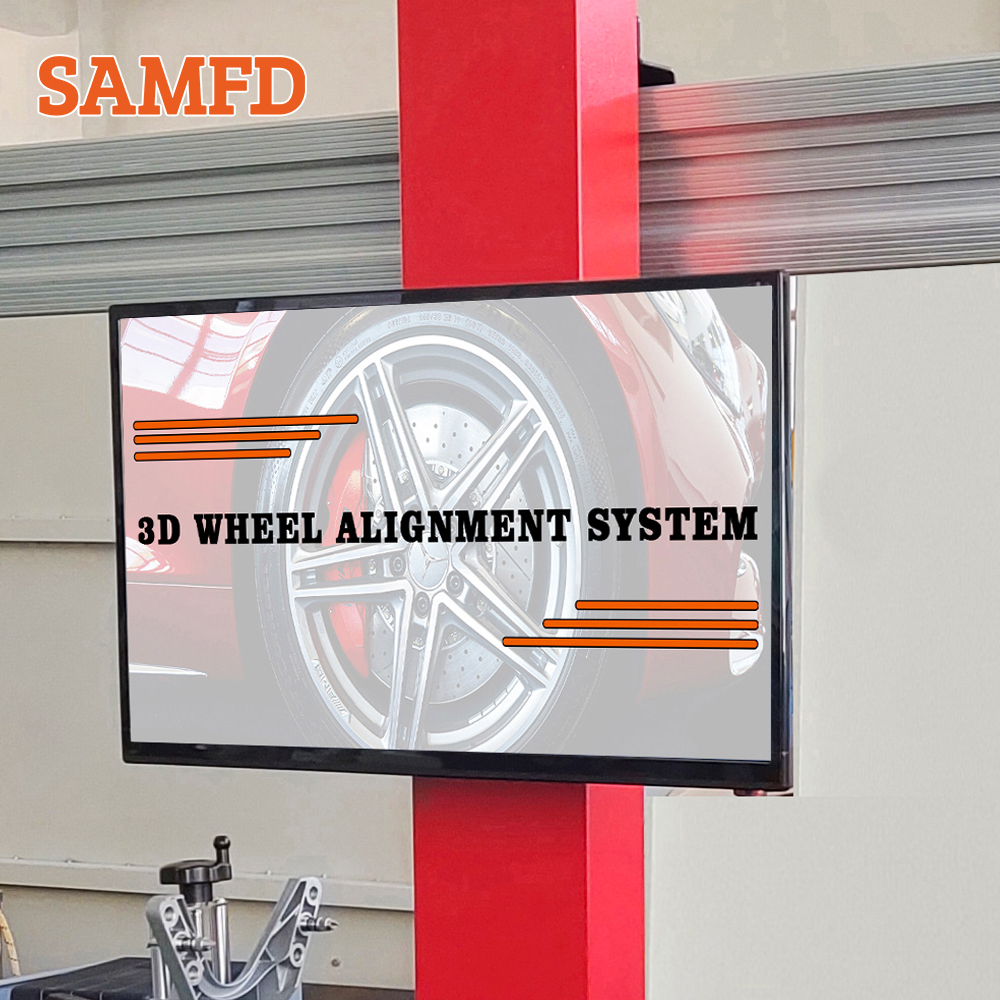

32" INCH HIGH DEFINITION DISPLAY

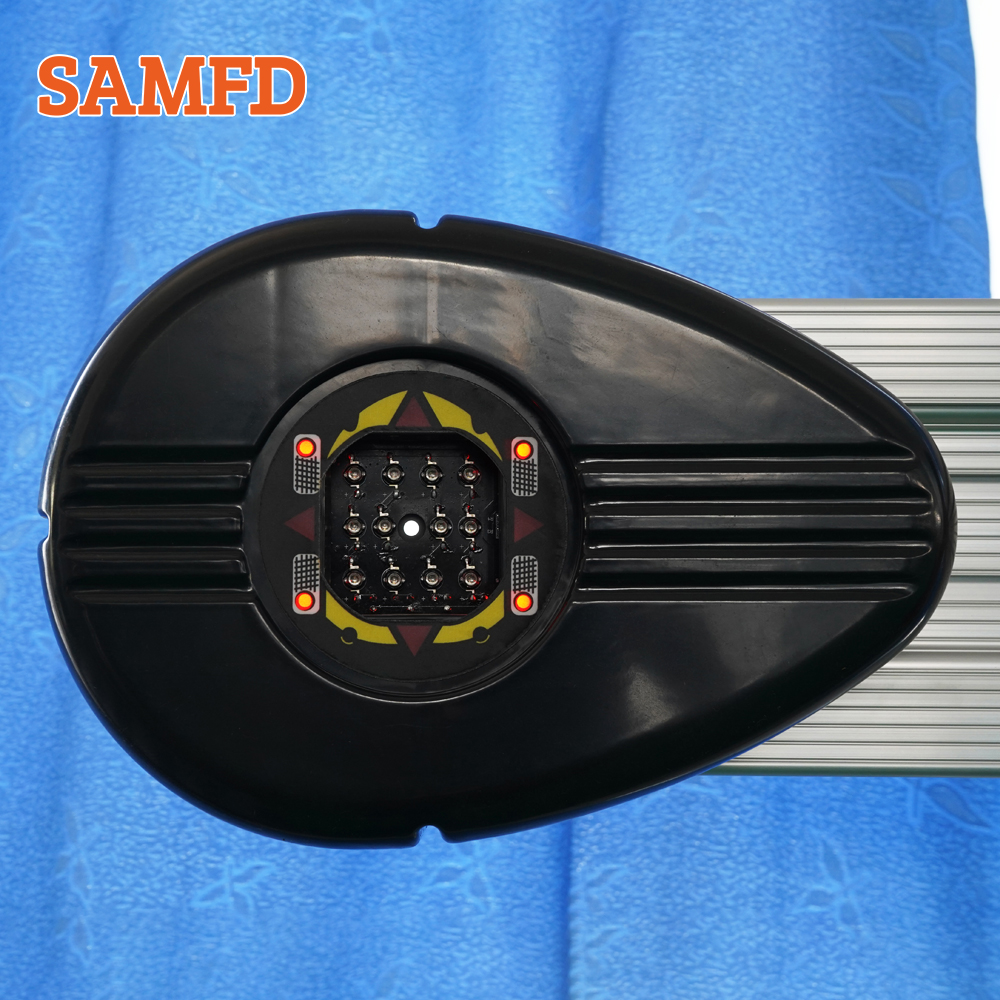

8 MEGA-PIXELHD CAMERAS*2
STEERING WHEEL HOLDER
Adjustable handleThe fixing frame is carefullywrapped and does not damagethe steering wheel

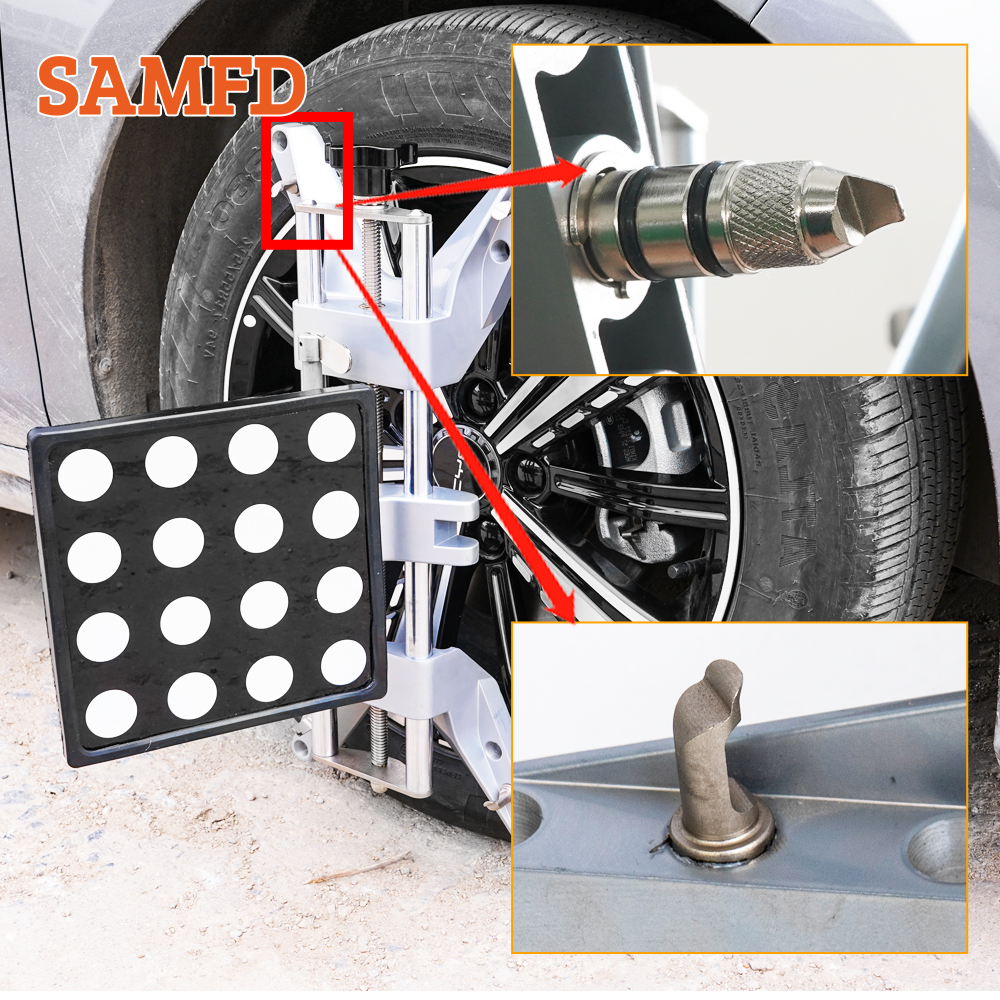

LIGHTWEIGHT ALUMINUM ALLOY FIXTURE
Lightweight and labor-saving, with wide size and wide applicability . The fixture is suitable for 11-25 inch tires
BIGGER TARGET PLATE
Anti strong light and high reflectionmaterial, precise feedback signal,anti drop, wear-resistant, antidust, and more durable.

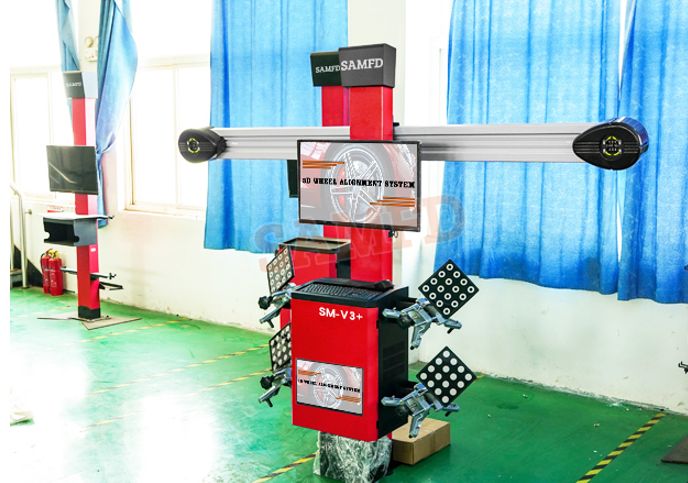

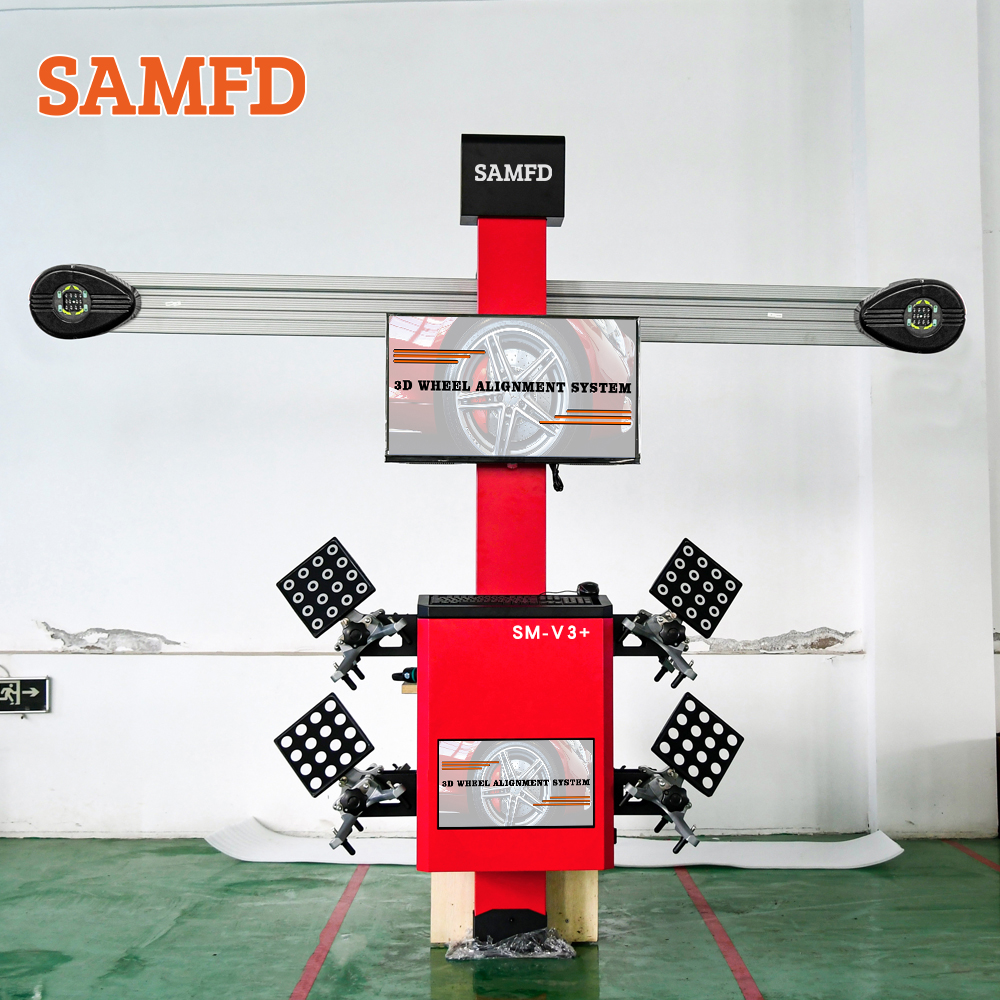

Product Actual Photos
